500 kVA Three-Phase RMU Integrated Compact Substation

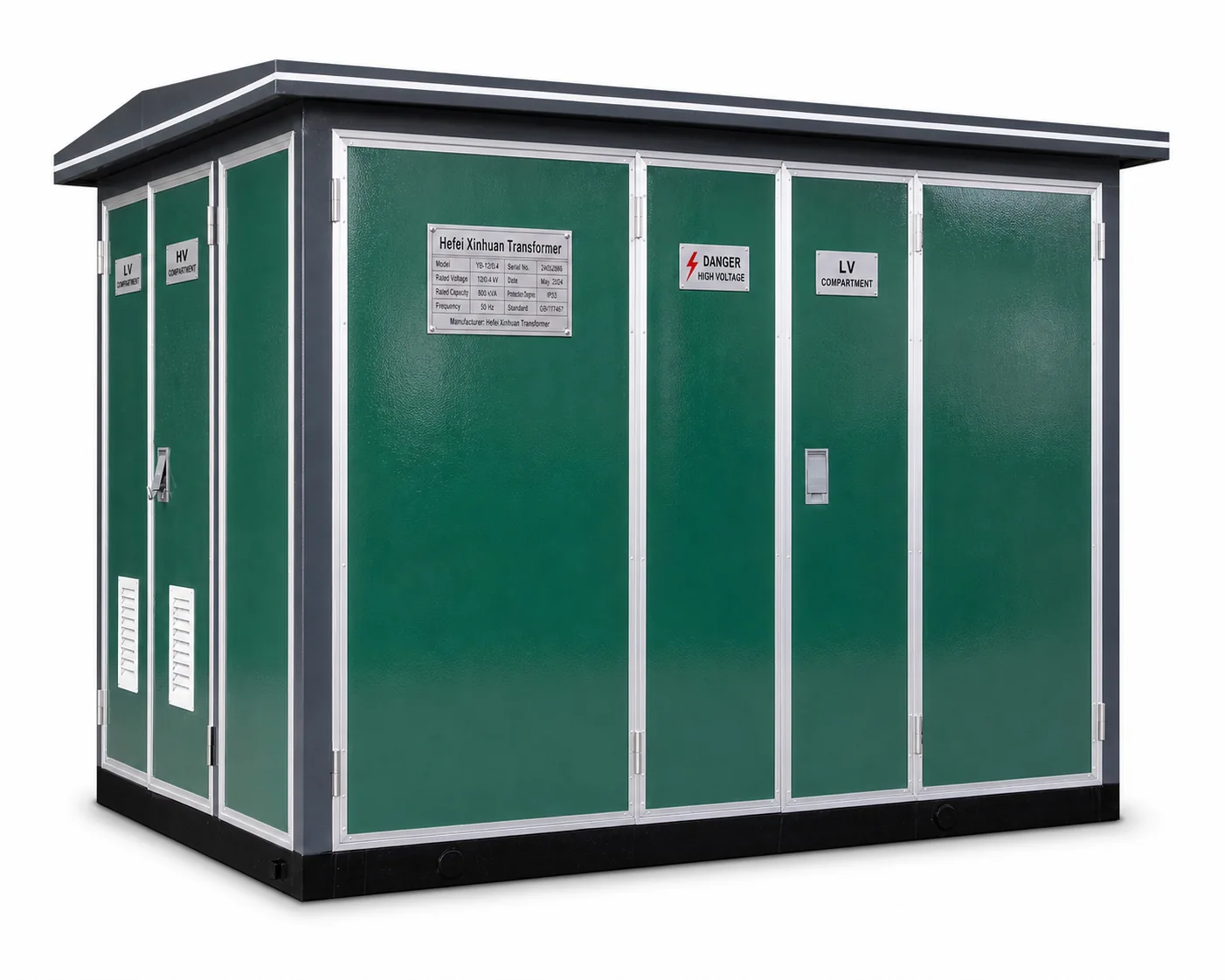

This 500 kva three-phase rmu integrated compact substation is an integrated package solution combining medium-voltage switching, transformer equipment, low-voltage distribution, and project-specific protection functions in one enclosure. It is designed for fast deployment, practical outdoor service, and configurable layouts across utility, renewable, industrial, and commercial projects.

Request Quote Back to Catalog

Technical Specifications

Rated Capacity 500 kVA
High Voltage Customized
Low Voltage 0.4 kV / 0.48 kV / customized
Frequency 50 Hz / 60 Hz
Phase Three Phase
Transformer Type Compact / package substation
MV Section MV switchgear / RMU

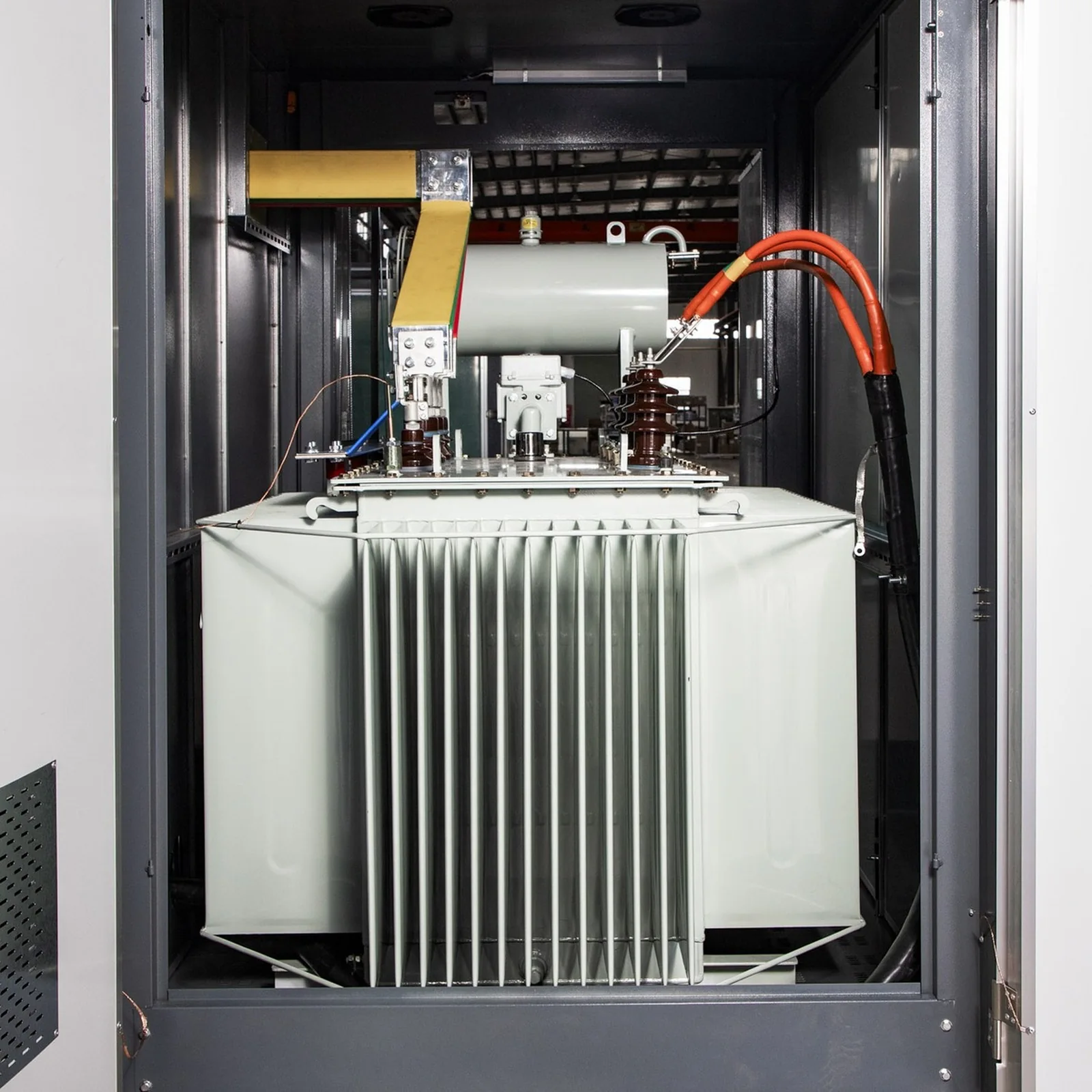

Transformer Section Oil-immersed / dry-type according to configuration

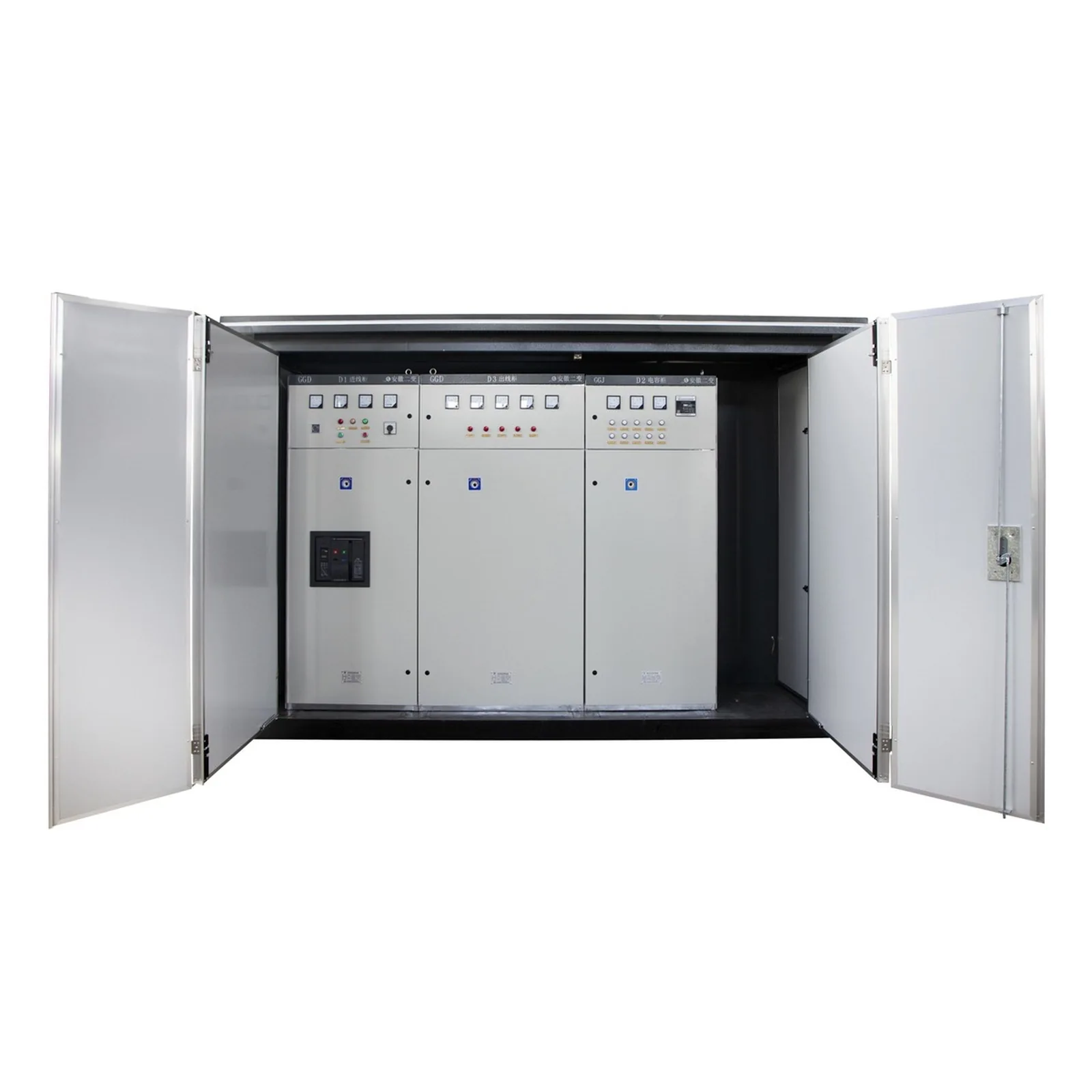

LV Section Low-voltage distribution cabinet

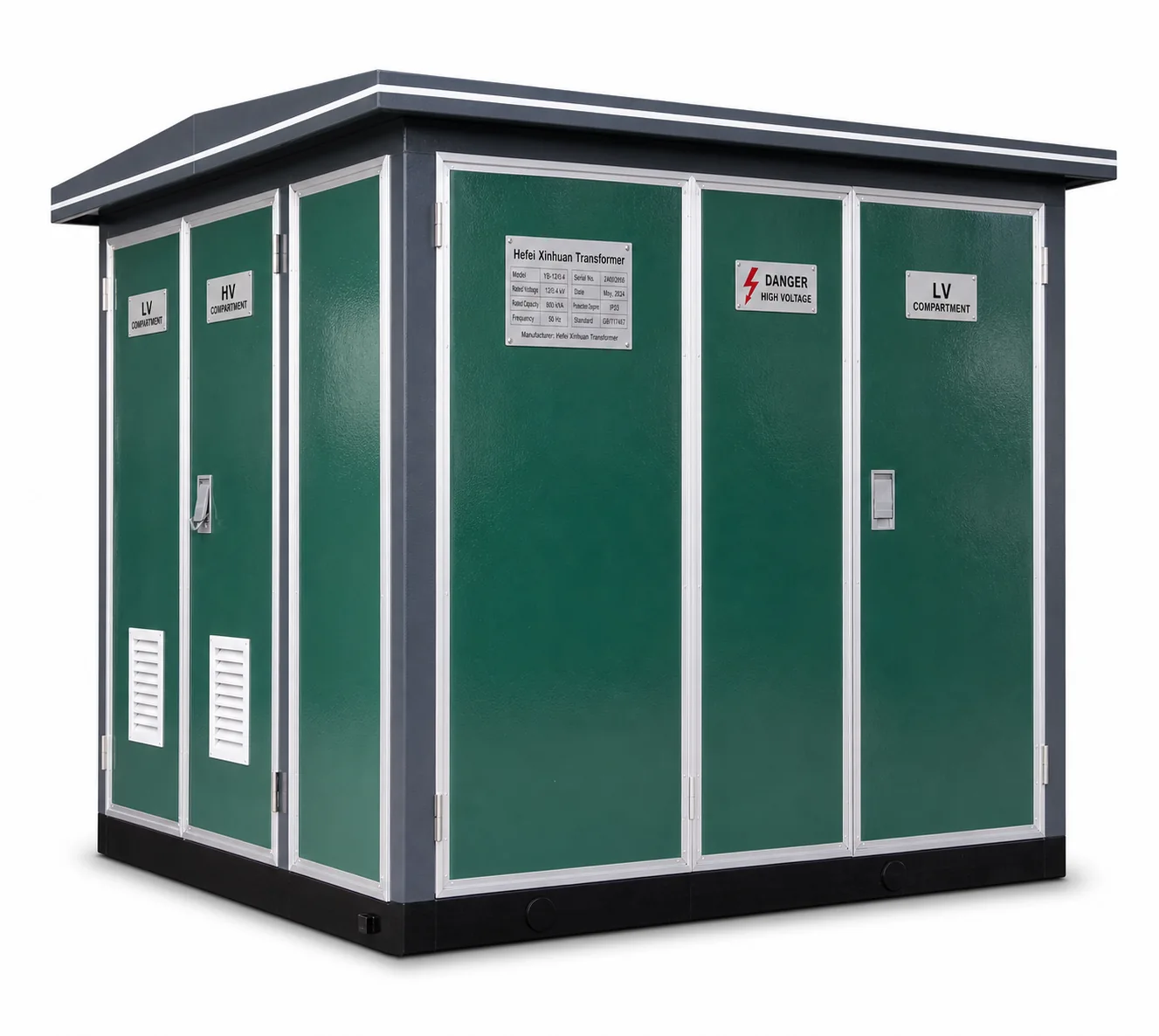

Enclosure Outdoor prefabricated enclosure
Standard IEC / customized project specification
Installation Outdoor
Application Utility distribution / industrial and commercial power distribution

Pricing & Availability

Reference FOB Price

USD 13100

Public Marketplace Range

$3,300 – $9,800

Based on public listings. Often lead-generation or minimum-config prices — not full-scope.

Minimum Order

1 Set

Units in Stock

5

Model / Series

RMU compact

Indicative export reference only. Final offer depends on voltage, standards, materials, accessories, and project scope. Request a firm quote →

Product Information

Product ID

500_KVA_THREE_PHASE_RMU_INTEGRATED_COMPACT_SUBSTATION

Last Updated

2026-04-06 00:58:39.000644

Technical Highlights

  • This substation combines compact footprint, integrated equipment coordination, and project-oriented customization in one packaged solution. It supports faster field deployment, simplified site interfaces, and practical outdoor operation across utility, renewable, and industrial applications.

Application Scenarios

  • Urban and rural distribution projects
  • Industrial parks and commercial developments
  • Solar, wind, PV, and BESS projects
  • Mining, infrastructure, and utility substations
  • Fast-deployment outdoor power distribution systems

Key Features

  • Integrated 500 kVA class substation solution for fast project deployment

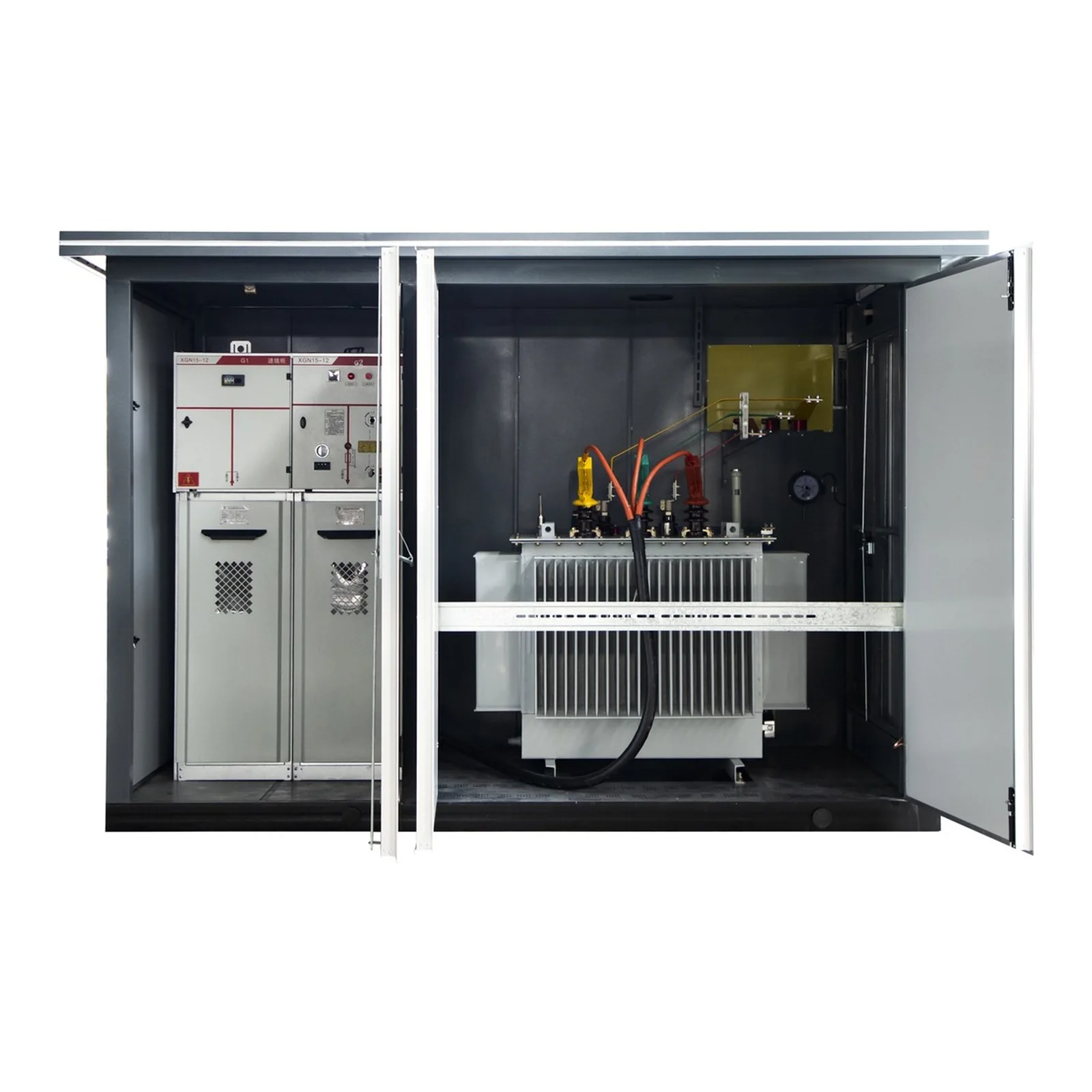

  • Combines MV switching, transformer equipment, LV distribution, and protection functions in one enclosure
  • Suitable for utility, renewable, industrial, infrastructure, and commercial applications
  • Configurable internal layout, enclosure design, and feeder arrangement according to project needs
  • Outdoor-duty housing with options for monitoring, anti-corrosion, and special environment adaptation
  • Supports IEC / ANSI or project-specific electrical and civil interface requirements

Optional Configurations

  • Transformer type: oil-immersed or dry-type
  • MV switching scheme and feeder quantity
  • LV outgoing feeders and metering arrangement
  • Enclosure material, color, and anti-corrosion finish

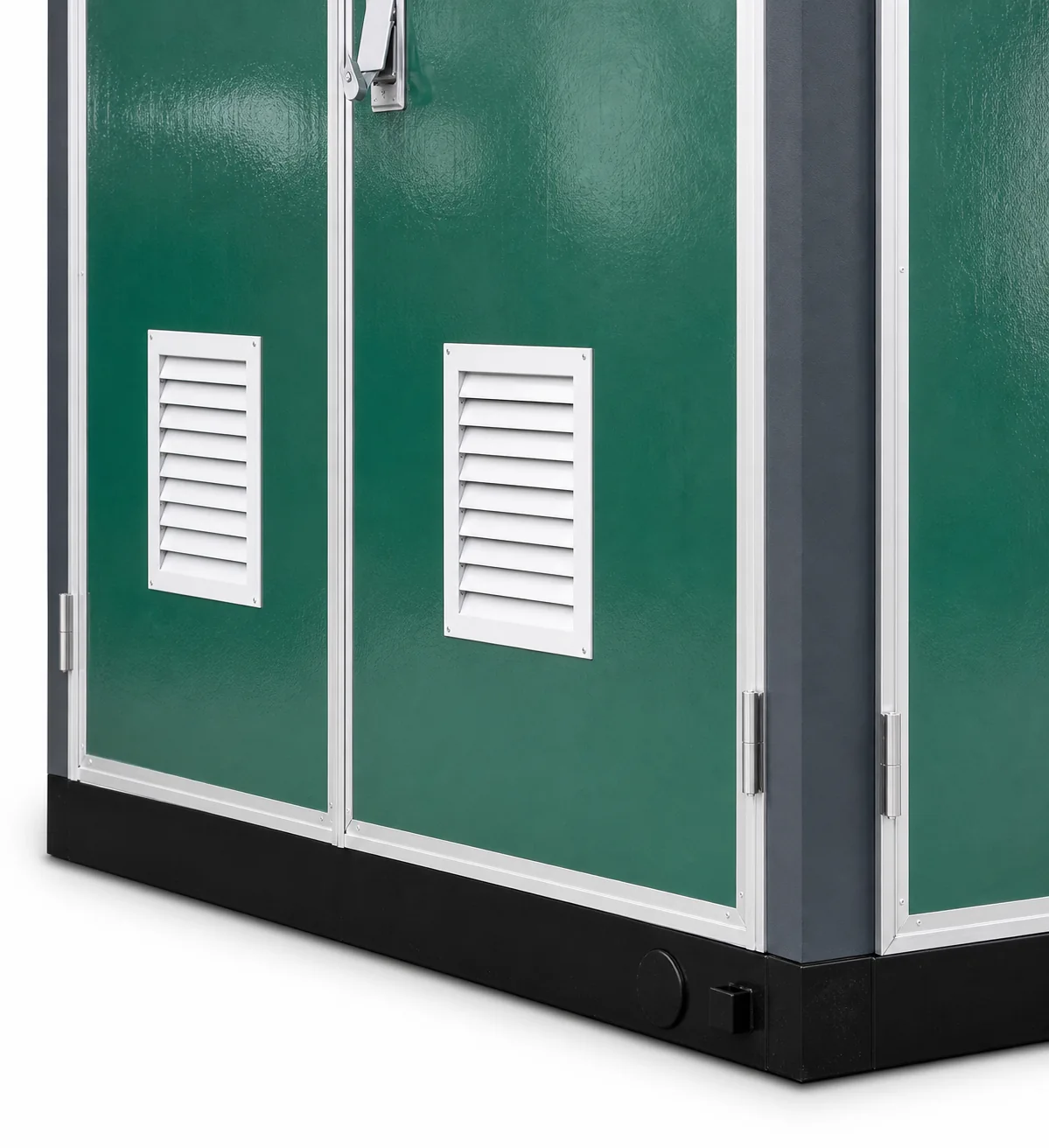

  • Monitoring, fire suppression, ventilation, and auxiliary systems
  • Civil interface and cable entry arrangement

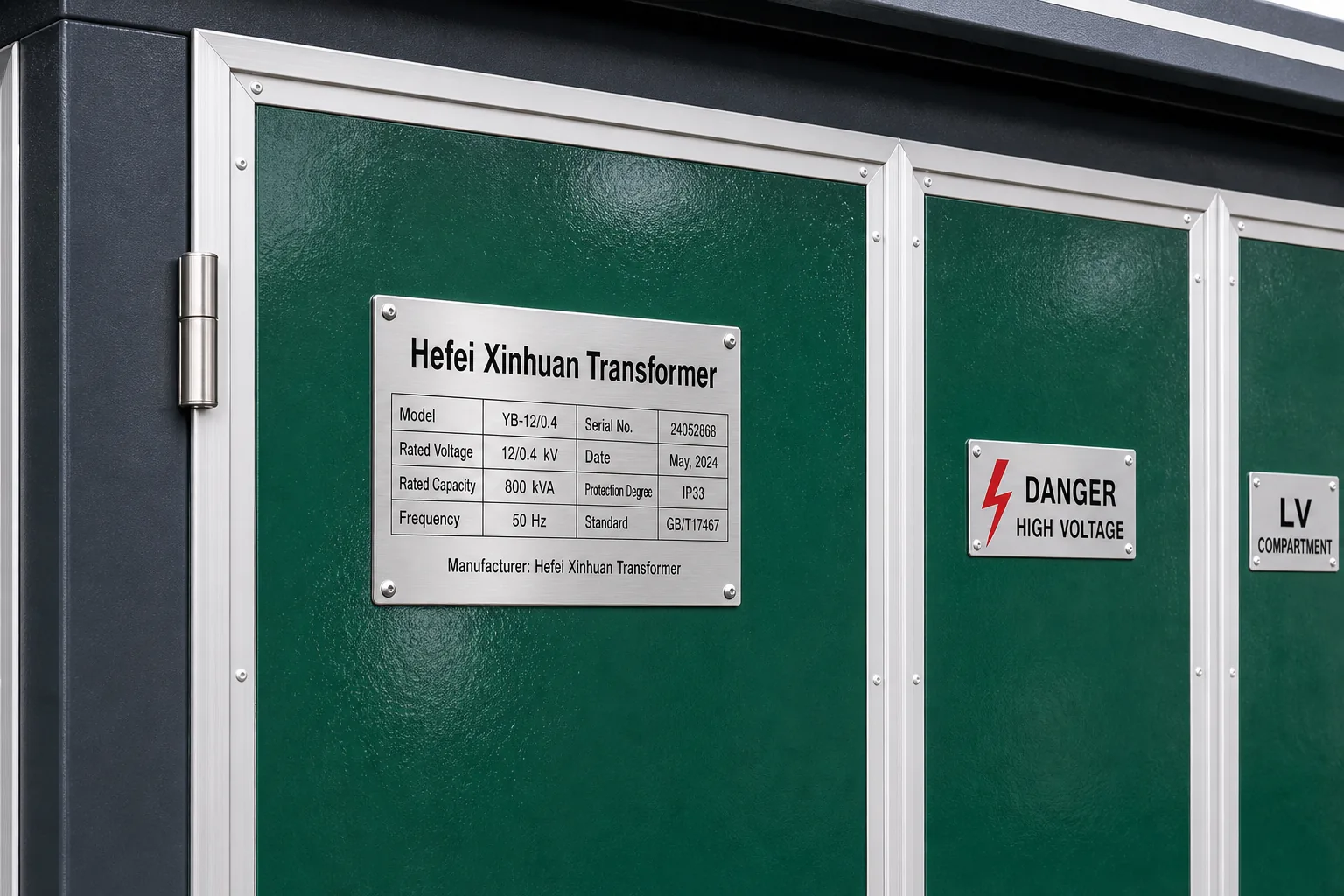

  • Color, nameplate language, and document package
  • Ambient temperature, altitude, and installation condition adaptation

Standards & Compliance

The product can be produced according to IEC standards and customer technical specifications. Routine factory tests, inspection records, and technical documentation can be provided before shipment. Optional configurations for project-specific grid, environmental, and accessory requirements are available upon request.

Packaging, Delivery & Service

The product is prepared for export shipment with suitable packing and handling arrangements based on destination, lifting, and transport requirements. Technical documents, test reports, labeling confirmation, and pre-shipment coordination can be supplied according to order requirements. OEM/ODM support and project-based coordination are available for qualified inquiries.

Please send us your required capacity, MV/LV ratings, feeder arrangement, switching preference, enclosure requirements, and installation conditions for the 500 kva three-phase rmu integrated compact substation. Our team can recommend a suitable integrated solution and provide a quotation based on your project requirements.
