Dry-Type Transformer Spec Sheet

Dry-Type Transformer Specification Sheet

A clean, one-page product specification layout for the 1000 kVA and 2000 kVA dry-type transformer range. The page uses dry-type language throughout, removes the serial-number column, and pairs the technical tables with product photos and dimension drawings.

Request Quote
Cooling AN / AF
Standard IEC 60076-11
Frequency 50 / 60 Hz
Vector Group Dyn11

Product 1

1000 kVA Dry-Type Transformer

11kV / 0.4kV · Compact footprint for indoor dry-type distribution rooms.

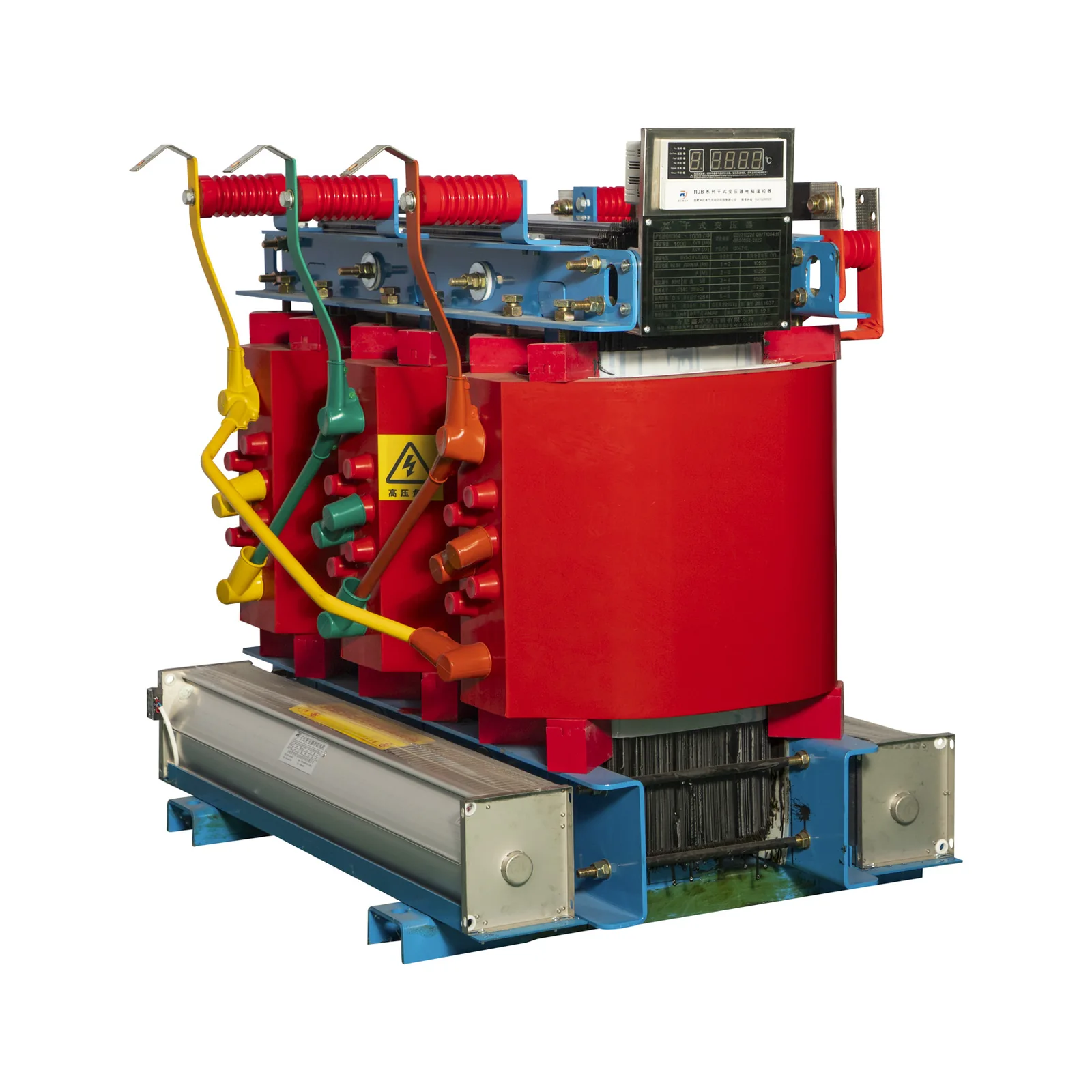

1000 kVA Dry-Type Transformer representative product image

Representative product image

1000 kVA Dry-Type Transformer dimension drawing

Dimension drawing with no side fan

Weight Approx. 2670 kg
Dimensions Approx. 1430 × 920 × 1005 mm
Transformer model 1000kVA/11kV-0.4kV
Phase number 3 phases
Type Dry-type transformer
Core model 23Q110
Core structure Stacked iron core
HV winding 11 kV
LV winding 0.4 kV
Rated frequency 50/60 Hz
Rated capacity 1000 kVA
HV rated voltage 11±2×2.5%
LV rated voltage 0.4 kV
HV rated current 52.5 A
LV rated current 1443.4 A
Connection group Dyn11
No-load loss 1174 W
No-load current 0.5%
Load loss 7166 W
Short-circuit impedance 5.98%
Cooling method AN / AF
Noise level 50 dB

Product 2

2000 kVA Dry-Type Transformer

11kV / 0.4kV · Higher-capacity dry-type unit with wider base footprint.

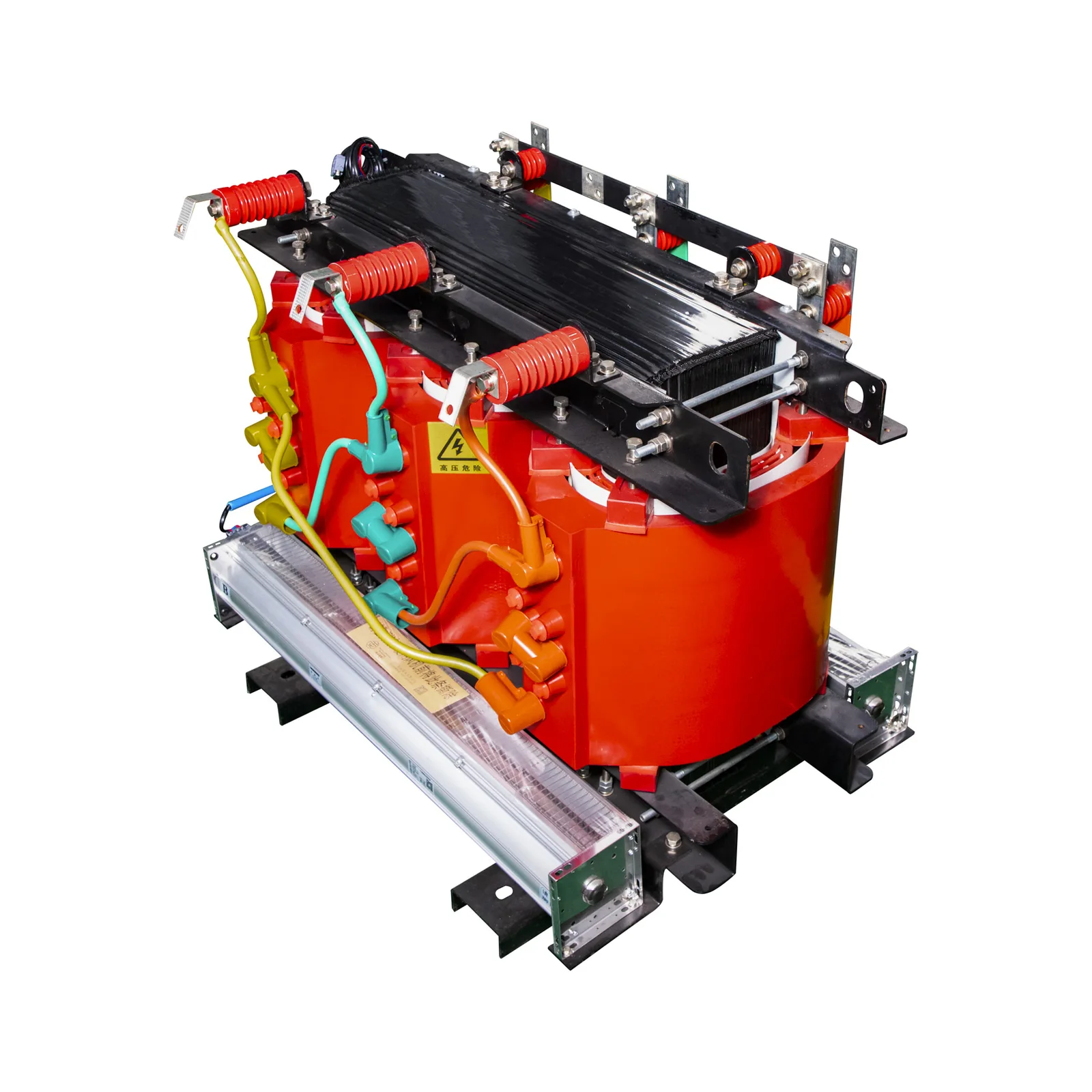

2000 kVA Dry-Type Transformer representative product image

Representative product image

2000 kVA Dry-Type Transformer dimension drawing

Dimension drawing with no side fan

Weight Approx. 4660 kg
Dimensions Approx. 1700 × 1170 × 1290 mm
Transformer model 2000kVA/11kV-0.4kV
Phase number 3 phases
Type Dry-type transformer
Core model 23Q110
Core structure Stacked iron core
HV winding 11 kV
LV winding 0.4 kV
Rated frequency 50/60 Hz
Rated capacity 2000 kVA
HV rated voltage 11±2×2.5%
LV rated voltage 0.4 kV
HV rated current 105 A
LV rated current 2886.8 A
Connection group Dyn11
No-load loss 1983 W
No-load current 0.5%
Load loss 12715 W
Short-circuit impedance 6%
Cooling method AN / AF
Noise level 50 dB

Comparison table

1000 kVA vs 2000 kVA dry-type transformer

One clean table for buyers and engineers: same spec format, no serial-number column, and the key differences visible at a glance.

Parameter 1000 kVA 2000 kVA
Transformer model 1000kVA/11kV-0.4kV 2000kVA/11kV-0.4kV
Phase number 3 phases 3 phases
Type Dry-type transformer Dry-type transformer
Core model 23Q110 23Q110
Core structure Stacked iron core Stacked iron core
HV winding 11 kV 11 kV
LV winding 0.4 kV 0.4 kV
Rated frequency 50/60 Hz 50/60 Hz
Rated capacity 1000 kVA 2000 kVA
HV rated voltage 11±2×2.5% 11±2×2.5%
LV rated voltage 0.4 kV 0.4 kV
HV rated current 52.5 A 105 A
LV rated current 1443.4 A 2886.8 A
Connection group Dyn11 Dyn11
No-load loss 1174 W 1983 W
No-load current 0.5% 0.5%
Load loss 7166 W 12715 W
Short-circuit impedance 5.98% 6%
Cooling method AN / AF AN / AF
Noise level 50 dB 50 dB
The layout is intentionally compact for spec-sheet use. If you want, I can turn this into a dedicated downloadable PDF as the next step.
