Instrument Transformers · Combined Metering Units (MOF/JLS)

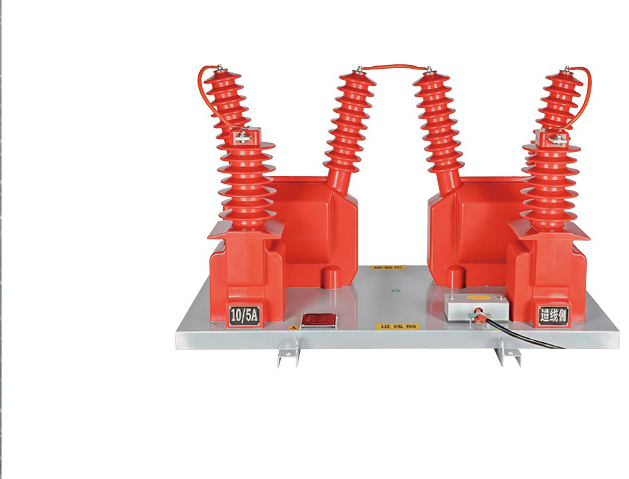

XinHuan JLSZV-35 and JLSZY-35W outdoor dry-type combined metering transformers (Metering Outfits / MOF) integrate two or three voltage transformers and two or three current transformers into a robust, oil-free assembly. Perfect for / electric utility tariff metering and billing boundary points.
| Rated Voltage | 35 kV (Max. 40.5 kV) |
|---|---|
| CT Primary Current | 5 ~ 1000 A (Single or Dual Ratio) |
| CT Secondary Current | 5 A / 1 A |
| PT Secondary Voltage | 100 V / 110 V |
| Accuracy Class | Active Energy 0.2S / Reactive Energy 0.5 |
| Rated Burden | CT: 10~15 VA | PT: 15~30 VA |
| Structure | Dry-Type Cycloaliphatic Resin Cast (Oil-Free) |
| Mounting Base | Hot-dip galvanized channel steel |
Watch 100% factory routine testing & quality control inspections.
Status
Published
Product ID
35KV_OUTDOOR_DRY_TYPE_COMBINED_METERING_TRANSFORMER_JLSZV_35
Last Updated
2026-09-10T01:57:54.441018
High-precision 3D engineering cutaway model illustrating the core, windings, insulation, conservator tank, and protection accessories.

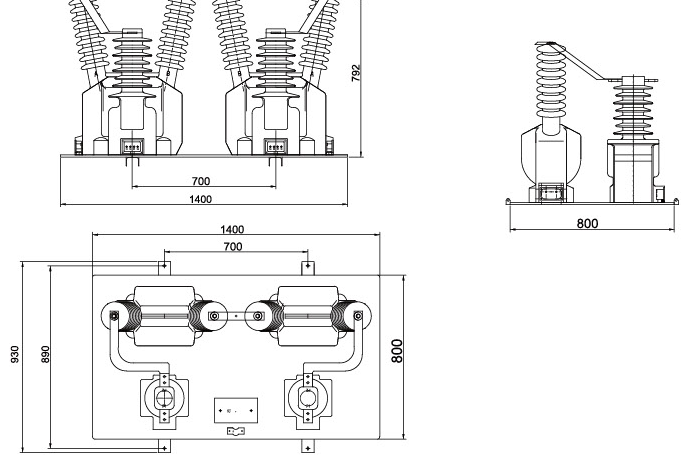

Official XinHuan factory 2D vector General Arrangement drawing for 35kV Outdoor Dry-Type Combined Metering Transformer (JLSZV-35 / JLSZY-35W). Includes front elevation view, top plan view, bushing center-to-center distances, mounting hole footprint, and complete vector group layout.
Complies with IEC 61869-1, IEC 61869-4, and GB/T 20840.4. Oil-free, explosion-proof, and environmentally friendly.
Export grade steel-frame wooden case with specialized lifting lugs.
Specify 3-phase 3-wire (2 elements) or 3-phase 4-wire (3 elements) scheme along with primary CT current ratio for immediate quote.
