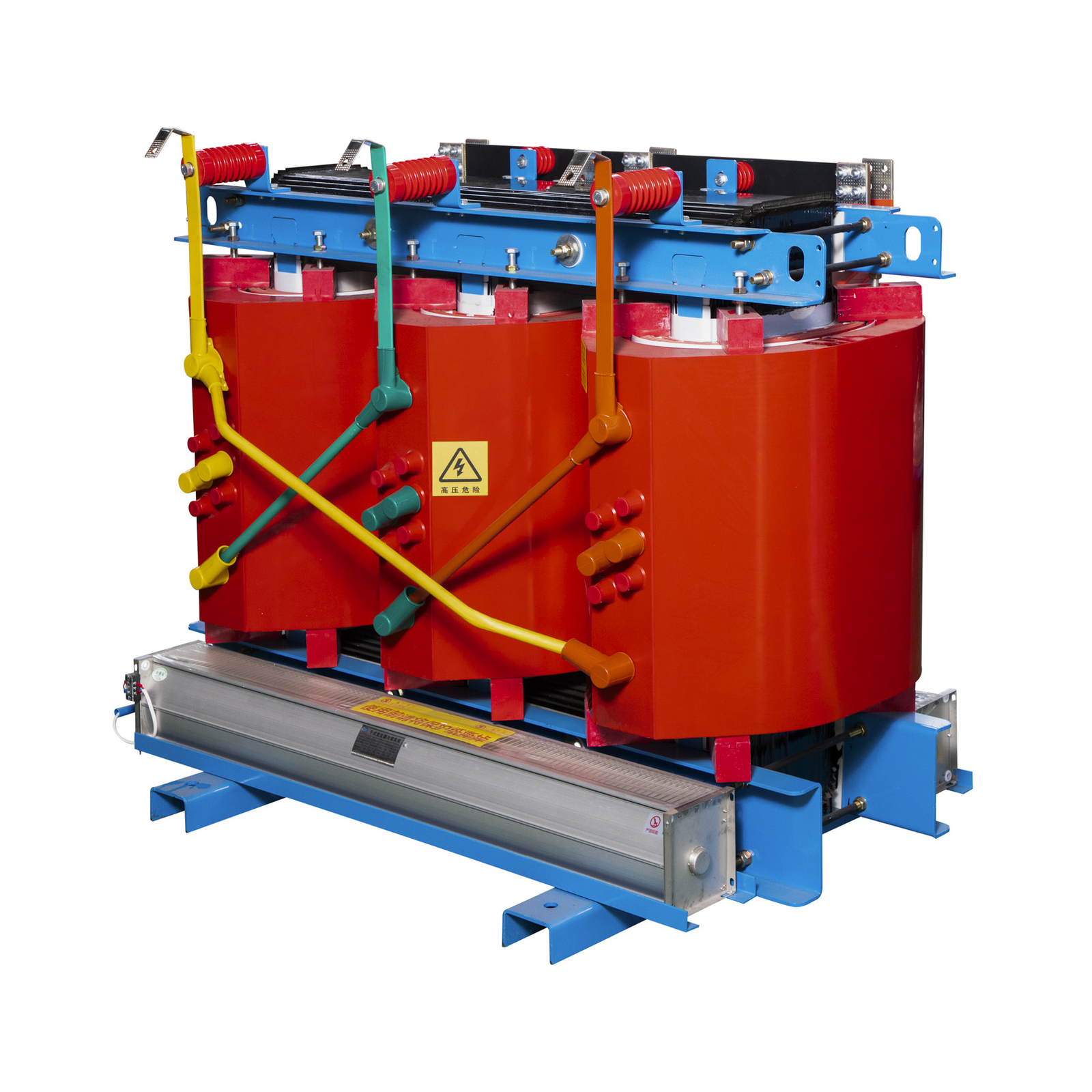

315 kVA 10kV SCB13 Three-Phase Cast Resin Dry-Type Transformer

Technical Specifications

Model Series	SCB10 / SCB11 / SCB13 / SCB14
Rated Capacity	315 kVA
Primary Voltage (U1)	10,000 V (10 kV / 11 kV)
Secondary Voltage (U2)	400 V / 415 V / 480 V (3-Phase 4-Wire)
Vector Group	Dyn11
Rated Frequency	50 Hz / 60 Hz
Cooling Method	AN (Natural Air) / AF (Forced Air Blower)
Primary Current (I1)	18.19 A
Secondary Current (I2)	438.3 A
Guaranteed No-Load Loss (P0)	840 W
Guaranteed Load Loss (Pk at 120°C)	3380 W
Short-Circuit Impedance (Uk)	4.0%
Insulation Class	F Class (155°C) / H Class (180°C) Epoxy Cast Resin
Temperature Rise Limit	Winding Temp Rise ≤ 100 K (F Class) / ≤ 125 K (H Class)
IP Protection Class	IP00 (Open Type) / IP20 (Indoor Enclosure) / IP23 (Loubered)
Total Weight	1550 kg
Overall Footprint (L×W×H)	1100 mm × 850 mm × 1180 mm
Governing Standards	IEC 60076-11, GB/T 10228-2015, CE, ISO 9001

Equipment Video Walkthrough 100% Tested

Watch 100% factory routine testing & quality control inspections.

Pricing & Availability

Reference FOB Price

USD 4550

Public Marketplace Range

$2,050 – $3,850

Based on public listings. Often lead-generation or minimum-config prices — not full-scope.

Minimum Order

1 Set

Units in Stock

5

Model / Series

SCB13

Indicative export reference only. Final offer depends on voltage, standards, materials, accessories, and project scope. Request a firm quote →

Product Information

Status

Published

Product ID

315_KVA_10KV_SCB13_THREE_PHASE_CAST_RESIN_DRY_TYPE_TRANSFORMER

Last Updated

2026-04-06 00:58:37.858695

Technical Highlights

This product offers the advantages of indoor safety, low maintenance, and practical installation flexibility. It supports projects that need reliable electrical performance, oil-free operation, and configurable insulation, enclosure, monitoring, or cooling features for modern indoor distribution systems.

Application Scenarios

Commercial buildings and office complexes
Hospitals, schools, and public facilities
Industrial workshops and manufacturing plants
Data centers and mission-critical electrical rooms
Indoor infrastructure and utility support projects

Key Features

315 kVA rated capacity for safe indoor distribution and equipment supply
Dry-type insulation system suitable for indoor, low-maintenance installations
Three-phase construction for commercial, industrial, infrastructure, or special applications
Available with customized voltage ratio, enclosure, monitoring, and cooling options
Supports project-based IEC specifications and export-oriented documentation
Designed for dependable service where oil-free installation is preferred

Optional Configurations

High-voltage and low-voltage rating
Enclosure level: IP00 / IP20 / IP23 / customized
Temperature controller and smart monitoring options

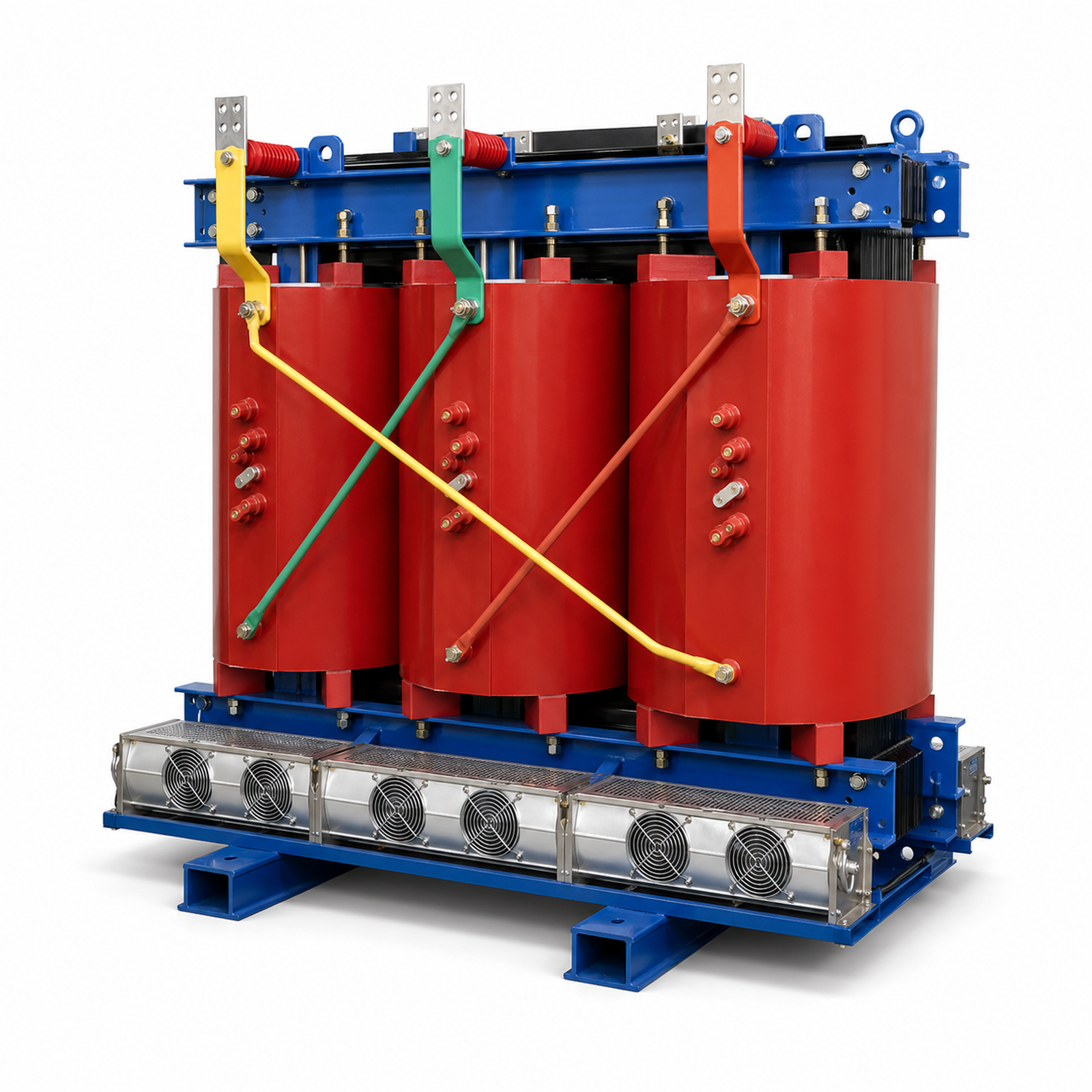

Cooling mode: AN / AF and fan arrangement
Winding material and insulation class
Project-specific standards and test document requirements
Color, nameplate language, and document package
Ambient temperature, altitude, and installation condition adaptation

Internal Component Engineering Anatomy

High-precision 3D engineering cutaway model illustrating the core, windings, insulation, conservator tank, and protection accessories.
