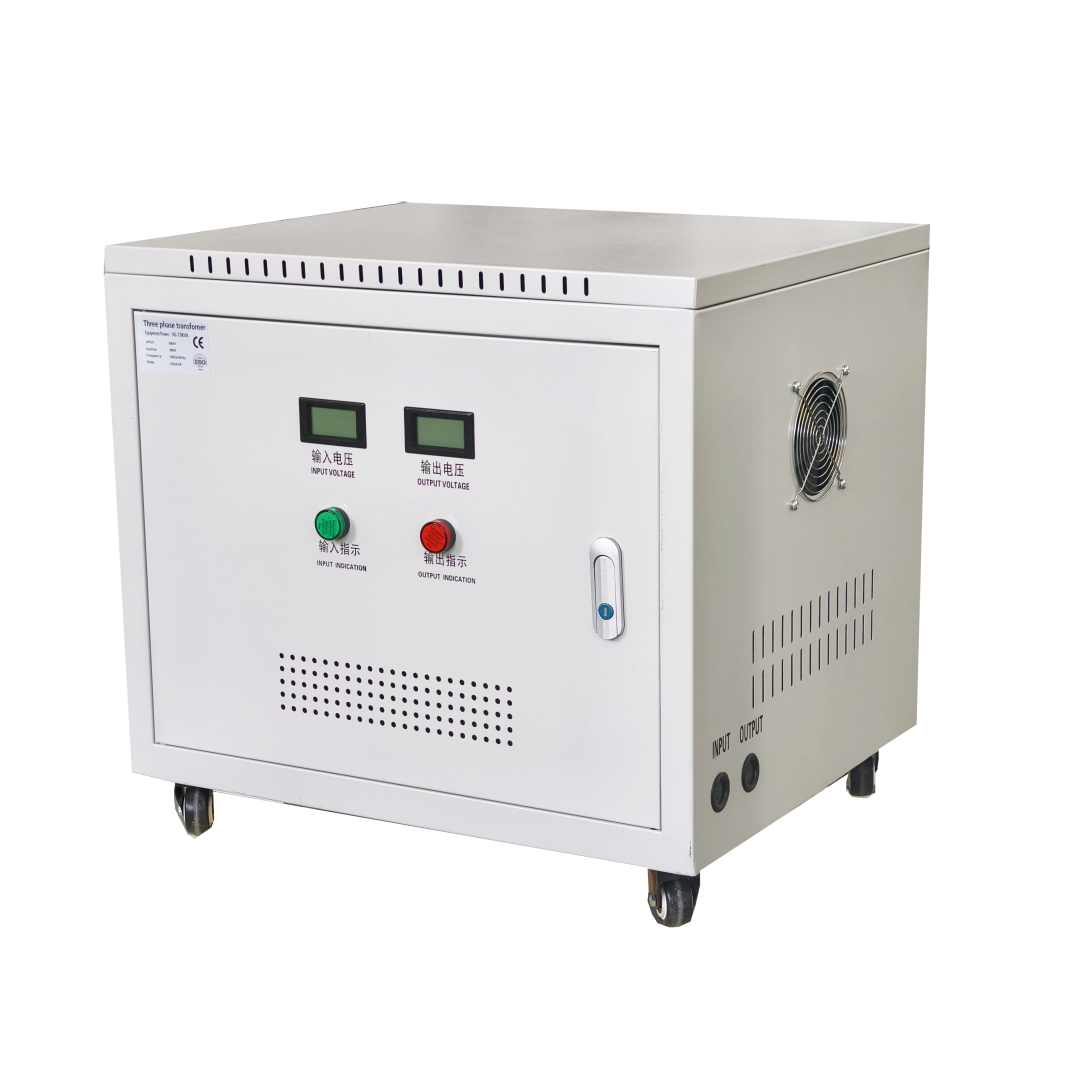

XH-ISO Power Three Phase 300kva Dry-type Transformer 690v 440v Aluminum Copper Winding Isolation Transformer Energy Storage
300 kVA 3-phase dry-type isolation transformer specially engineered for solar PV, battery energy storage systems (BESS), and 690V/440V grid interconnect applications.
