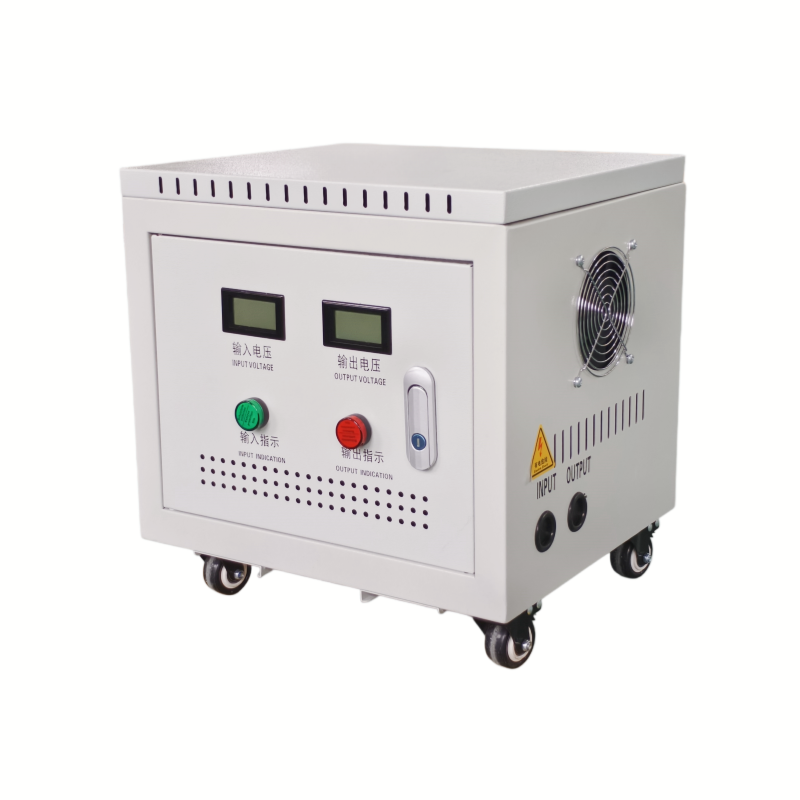

XH-ISO-1600K Isolation Transformer Supplier Photo 1

Isolation Transformers · Industrial Isolation Transformers

XH-ISO Three Phase Transformer 1600kva Ce Iso Voltage Transformers With 220v 380v 400v Output For Commercial Power

1600 kVA 3-phase dry-type power isolation transformer configured for heavy manufacturing plants, mining complexes, and chemical processing facilities requiring high kVA capacity.

Request Quote Back to Catalog

Technical Specifications

Product name Three phase dry type isolation transformer
Voltage accuracy ±1%
Voltage variation rate ≤1.5
Insulation resistance ≥150M
Electrical strength 3000VAC/1min
Design life 20 years
Cooling mode Dry air cooling
Input voltage 660V 440V 380V 220V(Customizable voltage)
Temperature rise ≤60℃
Noise 35db(Within meters)
Product name Three phase dry type isolation transformer
Voltage accuracy ±1%
Voltage variation rate ≤1.5
Insulation resistance ≥150M
Electrical strength 3000VAC/1min

Product Information

Status

Published

Product ID

XH-ISO-1600K

Last Updated

2026-07-31 08:57:23
