Technical Specifications
| Rated Primary Voltage | 10 kV / 6 kV / 3 kV |
|---|---|
| Rated Secondary Voltage | 100 V / 110 V / 220 V |
| Accuracy Class | 0.2 / 0.5 |
| Rated Burden | 15 ~ 50 VA |
| Thermal Limit Power | 200 VA |
| Insulation Level | 12 / 42 / 75 kV |
Instrument Transformers · Voltage Transformers (PT/VT)

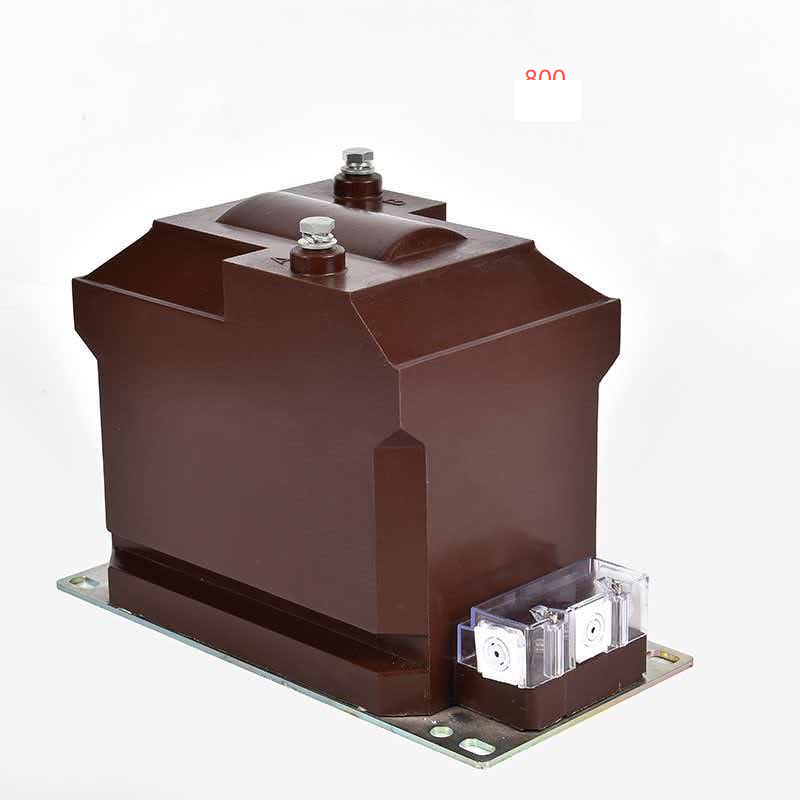

10kV Indoor Single-Phase Voltage Transformer (JDZC-10 / JDZ10-10)
Compact indoor epoxy cast single-phase voltage transformer (JDZC-10 / JDZ10-10) for switchgear installation. Features low excitation loss, transparent secondary terminal cover for anti-tamper sealing, and high precision revenue metering performance.
Equipment Video Walkthrough 100% Tested
Watch 100% factory routine testing & quality control inspections.
Product Information
Status
Published
Product ID
10KV_INDOOR_SINGLE_PHASE_VOLTAGE_TRANSFORMER_JDZC_10
Last Updated
2026-09-10T01:57:54.441018
Internal Component Engineering Anatomy
High-precision 3D engineering cutaway model illustrating the core, windings, insulation, conservator tank, and protection accessories.
High-Grade Silicon Core
Electrolytic Copper Windings
Tap Changer System
Buchholz & Temp Sensors
Engineering Submittal Drawing
2D AutoCAD General Arrangement (GA) Drawing
Official XinHuan factory 2D vector General Arrangement drawing for 10kV Indoor Single-Phase Voltage Transformer (JDZC-10 / JDZ10-10). Includes front elevation view, top plan view, bushing center-to-center distances, mounting hole footprint, and complete vector group layout.
Full Dimensions ($L \times W \times H$)
Bushing Terminal Distances
Mounting Base Footprint
Vector Group & Title Block
Frequently Asked Questions
Related Markets & Resources
Standards & Compliance
Compliant with IEC 61869-3 and GB/T 20840.3. Sealed calibration label and terminal cover.
Packaging, Delivery & Service
Standard shockproof carton packing suitable for global air and sea transit.
Contact us for secondary voltage variants (100V, 110V, 120V, 220V) and quantity discounts.
