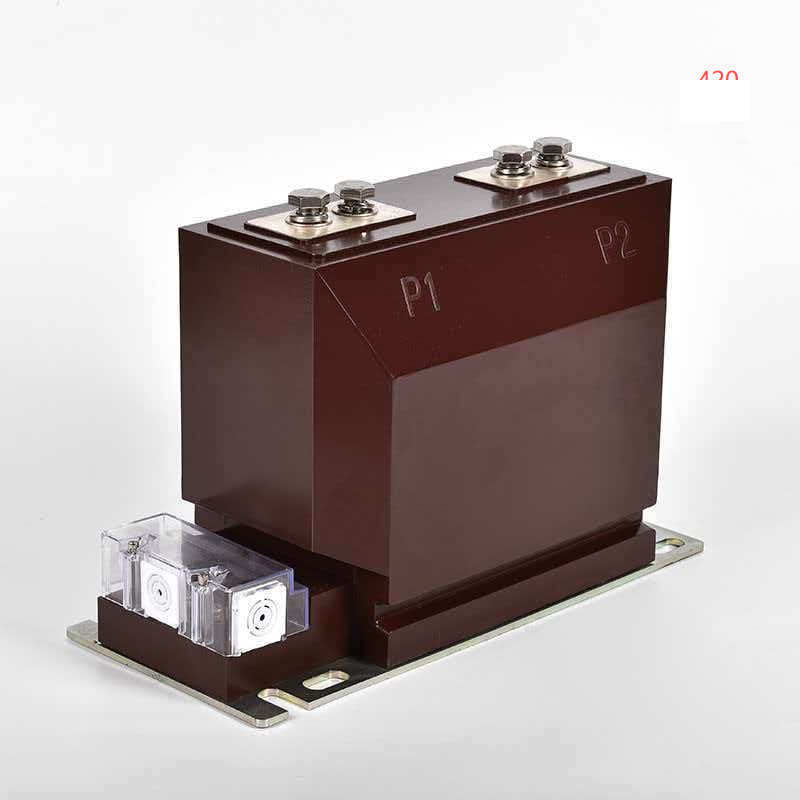

XinHuan / indoor post-type cast resin current transformer (LZZBJ9-10A1/A2G/QB6) widely used in KYN28A-12, XGN, and ABB UniGear medium-voltage switchgear. Delivers dual/triple secondary cores for simultaneous revenue metering and differential/overcurrent protection.
| Rated Voltage | 10 kV (Max. 12 kV) |
|---|---|
| Rated Frequency | 50 Hz / 60 Hz |
| Rated Primary Current | 5 ~ 3150 A |
| Rated Secondary Current | 5 A / 1 A |
| Accuracy Class Combinations | 0.2S/10P10, 0.5/10P10, 0.2/0.5/10P |
| Rated Output (Burden) | 10 ~ 30 VA |
| Insulation Level | 12 / 42 / 75 kV |
| Dynamic Withstand Current | Up to 80 kA peak |
| Installation | Indoor / Metal-Clad Switchgear |
