Isolation Transformers · Industrial Isolation Transformers

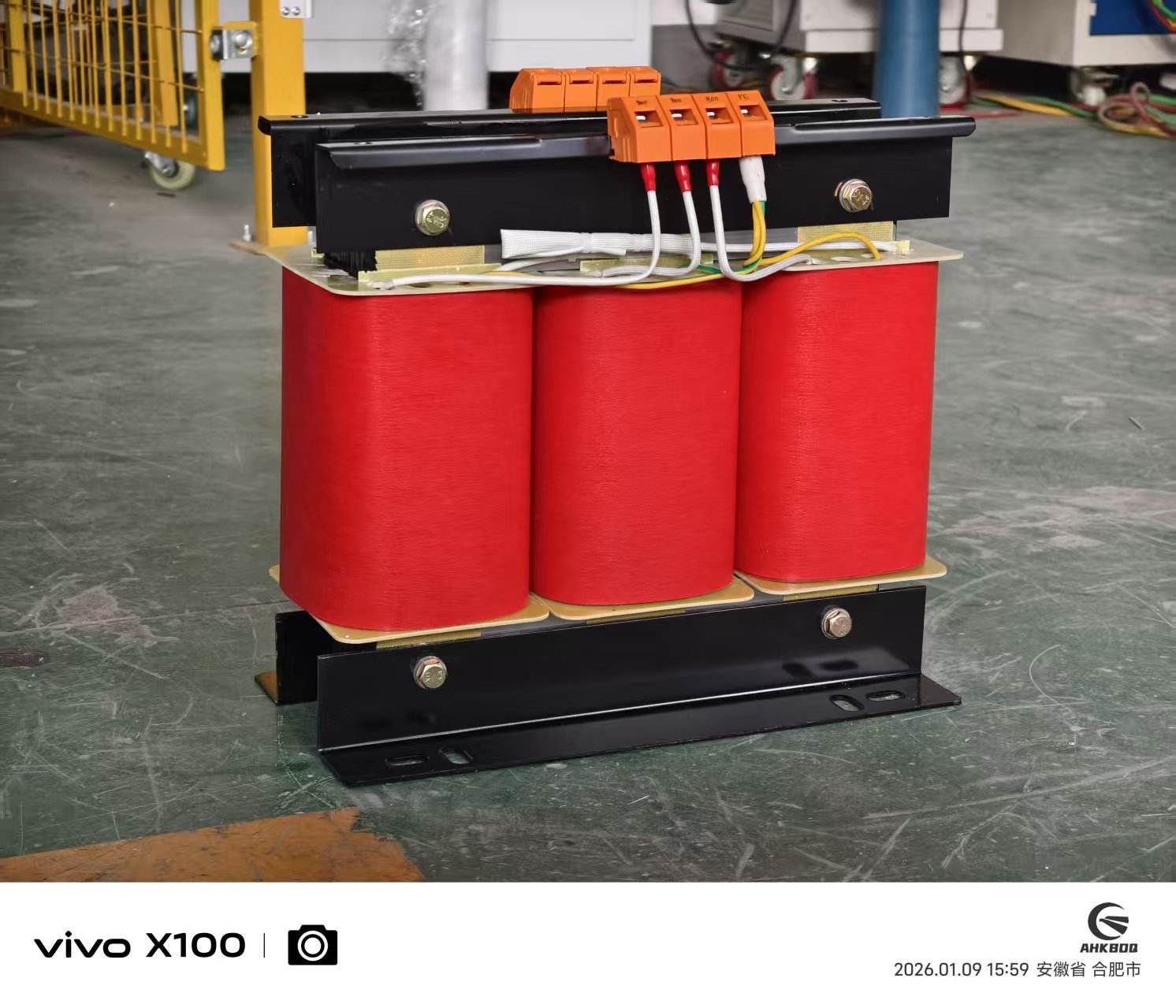

10 kVA three-phase dry-type AC isolation transformer designed for commercial and light industrial equipment. Provides galvanic isolation, neutral grounding, and noise attenuation across 415V/380V/240V to 220V/110V.
| Product name | Three Phase Transformer |
|---|---|
| Primary voltage | 480v customized |
| Secondary voltage | 208V customized |
| Cooling Method | Air Cooling |
| Efficiency | 98 % |
| Warranty | 5 Years |
| Standard | CE/ISO9001 |
| Product name | Three Phase Transformer |
| Primary voltage | 480v customized |
| Secondary voltage | 208V customized |
| Cooling Method | Air Cooling |
| Material | Copper/Aluminum Winding |
| Efficiency | 98 % |
| Warranty | 5 Years |
| Standard | CE/ISO9001 |
Status
Published
Product ID
XH-ISO-10K
Last Updated
2026-07-31 08:57:23
High-precision 3D engineering cutaway model illustrating the core, windings, insulation, conservator tank, and protection accessories.
Watch routine factory testing and quality control inspections inside XinHuan's manufacturing facility.
All export transformers undergo 100% full routine tests (IEC 60076) before packing and shipping.
Official XinHuan factory 2D vector General Arrangement drawing for XH-ISO 3 Phase Step Isolation Transformer 50/60hz 30kva 50kva 100kva 200kva 6kv 110v 220v 230v 380v 415v 480v Toroidal Coil Electronic. Includes front elevation view, top plan view, bushing center-to-center distances, mounting hole footprint, and complete vector group layout.
IEC 60076, CE, ISO 9001
Plywood Export Crate Packaging, 15-20 Days Lead Time
