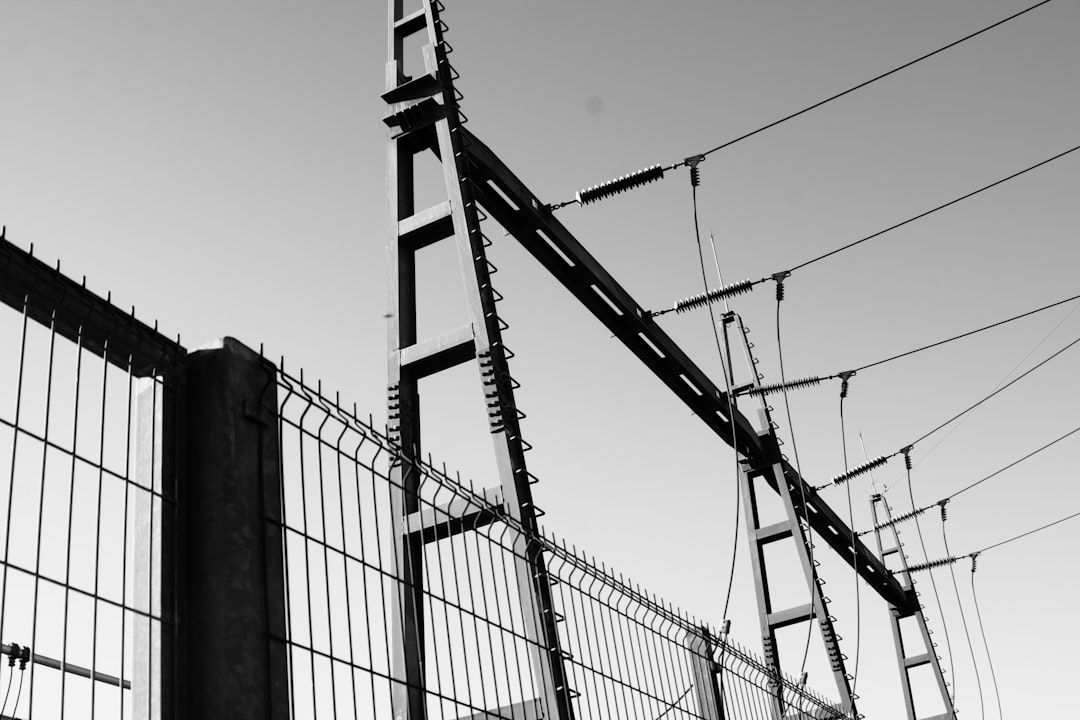

Industrial electrical substation power grid for Ghana project distribution

Country Landing Page · Ghana

China Factory-Direct 11kV / 33kV Transformer Exporter for Ghana

🇨🇳 Direct Hefei, China Factory Export to Ghana (Tema & Takoradi Ports). 50kVA–3150kVA 11kV & 33kV oil-immersed distribution transformers for ECG grid extension, VRA sub-station feeders, gold mining complexes, cocoa processing plants, and commercial EPC projects. No local middlemen markup — B2B factory-direct sea freight export with 100% IEC 60076 routine test submittals.

Request Ghana Quote WhatsApp Us Now
Factory-direct quotes from $1,800 USD 2-Hour Fast CIF Quote Export documents supported
11kV / 33kV
Voltage Class
50–3150kVA
Core Range
50Hz
Frequency
IEC 60076
Design Reference

Ghana Market Focus

Factory-Direct Oil-Immersed Distribution Supply

XinHuan is a China-based power transformer manufacturer exporting directly from our Hefei production facility to Ghana via Tema Port and Takoradi Port. We engineer 50Hz oil-immersed distribution transformers and cast-resin dry-type units aligned with Electricity Company of Ghana (ECG) utility standards, Volta River Authority (VRA) grid connection rules, and Ghana Standards Authority (GSA) certification guidelines.

We supply 50kVA to 3150kVA distribution transformers across Ghana's standard 11kV and 33kV primary medium-voltage distribution networks with 415V/240V (3-phase 4-wire) secondary output. Engineered for West Africa's tropical climate, our transformers feature heavy-duty IP54/IP55 weather-sealed tanks, Dyn11 vector groups, ONAN cooling, and low-loss silicon steel cores designed for gold mining sites in Obuasi and Tarkwa, cocoa processing plants in Kumasi, and commercial high-rises in Accra.

Product Specification Table

Product Oil-Immersed Distribution Transformer
Voltage 11kV / 33kV
Capacity 50kVA–2500kVA
Frequency 50Hz
Phase Three phase
Cooling ONAN (Oil Natural Air Natural)
Insulation Class A Mineral Oil
Enclosure Hermetically Sealed Corrugated Tank
Standard IEC 60076 / ANSI C57.12.00
Vector group Dyn11 / Yyn0 / customized
Tap changer Off-circuit tap changer (±2×2.5%)
Winding Copper / aluminum
LV voltage 0.4kV / 0.415kV / customized
Installation Outdoor pad-mount / pole-mount / indoor

— VERIFIED QUALITY & COMPLIANCE

Certified B2B Manufacturing & Laboratory Performance

Every transformer, compact substation, and switchgear unit is engineered under audited ISO quality management systems and type-tested according to IEC 60076 and ANSI C57 international standards.

IAF / CNAS Accredited

ISO 9001:2015 Quality System

Certified Quality Management System covering design, coil winding, vacuum drying, oil filling, and routine testing of 10kV–35kV distribution transformers.

Environmental System

ISO 14001:2015 Environmental

Environmental Management System certifying low-loss eco-designed core assemblies, zero PCB insulation oil, and environmentally safe production controls.

Occupational Health

ISO 45001:2018 Safety System

Occupational Health and Safety Management System ensuring safety containment in high-voltage testing bays and factory assembly protocols.

CNAS Lab Type Tests

IEC 60076 & GB Type Tests

Complete routine and type test records (temperature rise, impulse voltage withstand, short-circuit withstand) conducted at CNAS-accredited national research institutes.

SGS Audited Supplier

SGS Verified Manufacturer Audit

On-site factory audit certificate by SGS / Made-in-China, verifying manufacturing premises, export capacity, assembly lines, and legal qualification.

≥180 Units/Yr Export

International Delivery Certificate

Verified annual supply performance and delivery certificate for overseas power grid EPC and industrial infrastructure projects (Mozambique, Nigeria, Kenya, SEA).

Local Market Notes

What Ghana Buyers Usually Care About

Ghana enquiries commonly come from utility distribution, mining, factory expansion, and commercial property projects that need practical export support.

Tema and Takoradi routing should be locked early because inland trucking, unloading space, and project schedule can affect packing decisions.

Mining and industrial buyers often check accessory scope carefully, including temperature indication, surge protection, and cable termination arrangement.

Procurement Notes

Information That Speeds Up Approval

Send the required voltage ratio, kVA, vector group, and installation environment so we can align the quotation with the actual feeder layout.

Tell us whether the project needs a bare transformer only or a broader package with switchgear, metering, or compact-substation coordination.

If internal approval is required, ask for outline drawing, routine test scope, and delivery packing details in the first quotation round.

Quote Checklist

What to Send First

Voltage class, LV output, and tap range

Unit rating and total project quantity

Mining, utility, solar, or industrial application

Tema or Takoradi delivery target

Accessory scope and enclosure requirements

Drawing, approval, and documentation needs

Engineering Submittal & Room Layout

Substation Room Fit & CAD Footprint Diagrams

Select your required kVA rating to inspect overall dimensions (L × W × H), wheel track gauge, net weight, and minimum electrical room clearance before submittal.

IEC 60076-1 Submittal Specs
XinHuan Oil Tank & Radiators Technical Drawing
XinHuan Oil-Immersed Internal Core & Coil Drawing
11kV / 33kV Dual Voltage
IEC 60076 / IEEE Compliant
100% Factory Test Passed
Humidity-Sealed Export Pack

1000 kVA Technical Dimensions

Class F / H Certified
Overall Length (L) 1,680 mm
Overall Width (W) 1,050 mm
Overall Height (H) 1,820 mm
Roller Wheel Track Gauge (D) 820 mm
Total Equipment Net Weight 3,650 kg
Min Substation Clearance 1,000 mm surrounding
Download Technical Data Sheet (PDF) Request Factory Engineering Submittal

Need customized voltage taps, dual primary windings, or IP23 enclosure specs? Submit your project specs for a custom data sheet within 2 hours.

Reference Visuals

Export Photos Buyers Can Compare Against

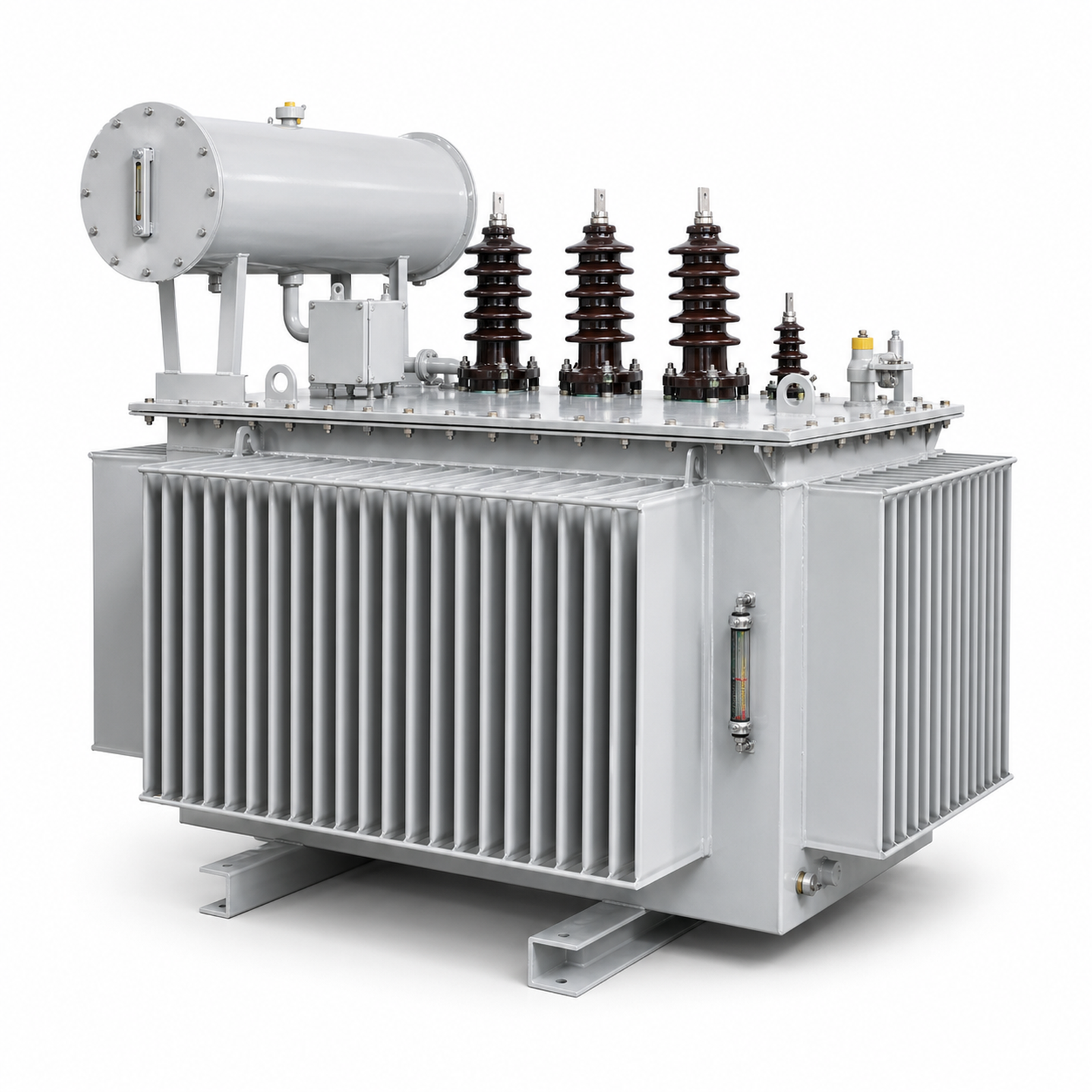

Oil immersed transformer reference for African export markets

Regional Delivery Reference

African Export Build Relevant to Ghana Projects

Helpful for Ghana utility and industrial buyers comparing the physical build and export finish of oil-immersed distribution units.

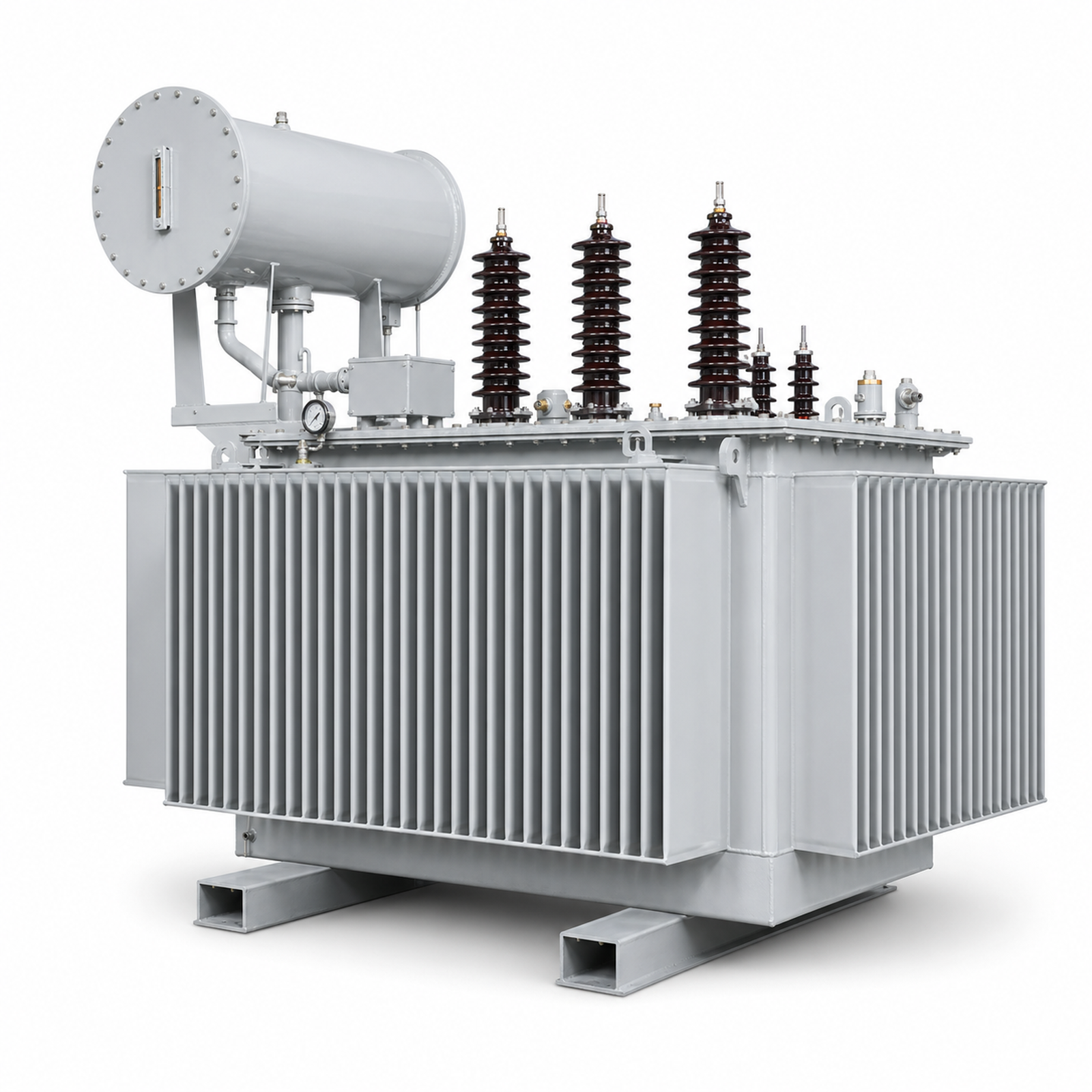

Oil-immersed transformer prepared for African distribution projects

Regional Product Reference

Distribution Transformer Build for Utility and Industrial Loads

A transformer-specific reference for Ghana buyers comparing tank construction, bushings, radiator layout, and factory finish.

Tender & Approval Support

Common Information Procurement Teams Ask For

Outline drawing, technical datasheet, and accessory confirmation

Routine test references and approval-ready quotation details

Commercial and packing documents for Tema or Takoradi routing

Optional coordination notes for switchgear, panel, or substation package scope

Tell us about any drawing, packing, or accessory requirements in the first RFQ. Detailed design drawings and final approval documents are scoped after commercial terms and project requirements are agreed.

Applications

Typical Ghana Project Applications

ECG distribution feeder injection & VRA medium-voltage network expansion

Gold mining (Obuasi, Tarkwa, Tarkwa Bay) industrial substation power supply

Cocoa processing, timber milling & industrial manufacturing plant distribution

Cast resin dry-type transformers (IP20/IP23) for commercial high-rises & hospital vaults in Accra

EPC contractor project scope with CIF Tema/Takoradi ocean freight & complete export test packages

Delivery & Ports

Shipment Support for Ghana

Direct ocean freight shipping to Tema Port (Accra/Kumasi) and Takoradi Port (Western Region) with complete export documentation, GSA alignment support, and customs clearance submittals.

Common Ghana project requirements include 250kVA, 500kVA, 800kVA, and 1000kVA 11kV/0.415kV & 33kV/0.415kV units for industrial estate distribution, mining auxiliaries, and feeder injection substations.

Why XinHuan

Why Buyers Choose XinHuan for Ghana

Factory-direct quotation support eliminating local trading markup for Ghanaian EPC contractors and industrial buyers

Full compliance with ECG / VRA 11kV & 33kV primary grid standards with 415V 4-wire secondary output

Tropicalized design with IP54 outdoor protection, high-efficiency silicon steel core, and ONAN cooling

Complete export documentation package (GSA clearance alignment, IEC 60076 Routine Test Reports, CAD Dimension Drawings)

Project Fit

11kV / 33kV Distribution Range

Utility feeders, mining loads, solar distribution, factory supply, and EPC project power systems.

Standard page scope: oil-immersed distribution transformers, 11kV / 33kV, 50kVA–1000kVA, three phase, 50Hz, ONAN cooling, copper/aluminum winding options, Dyn11 / Yyn0 / customized vector group, off-circuit tap changer, and outdoor or indoor installation.

Factory Capability, Shown Directly

See the Finished Transformer Area Behind Your RFQ

These are real photographs from XinHuan's Hefei facility. They show finished oil-immersed distribution transformers in the same manufacturing environment used for export projects.

Rows of completed oil-immersed distribution transformers in the XinHuan finished products workshop
Finished transformer workshop Real completed units, ready for final project checks
Completed oil-immersed transformers in XinHuan's marked finished products area
Finished products area Clear production-stage visibility for procurement teams
XinHuan vacuum drying equipment in the transformer production area
Production process Vacuum-drying equipment inside the working factory
Transformer oil handling area at XinHuan's Hefei factory
Oil treatment area Dedicated transformer-oil handling before dispatch
XinHuan transformer packing and shipping preparation
Export preparation Packing and loading preparation for project delivery
Need a closer look at build, packing, or inspection details? Send your voltage, kVA, quantity, and destination port with the RFQ.
IEC 60076 Routine Test & Assembly HD Factory Video

Factory Visual Proof

Visit the XinHuan Factory Before You Shortlist Suppliers

Explore our Hefei manufacturing facility through authentic production & routine testing videos. Practical visual proof for Ghana procurement teams evaluating a direct China manufacturer.

Hefei manufacturing base Automated coil winding & tank welding 100% IEC 60076 routine testing proof
Open Full Factory Tour & Videos
Official YouTube channels: Nancy Xu Serena XinHuan Transformer

Engineering Quality Assurance

Technical Standards & Certification Compliance

All XinHuan transformers undergo 100% factory routine testing, dielectric voltage withstand tests, and partial discharge inspection before dispatch.

IEC 60076 / 60076-11 ISO 9001:2015 Certified KEMA / CNAS Type Tested ANSI / IEEE C57

Engineering Submittal Package

Need CAD outline packs or type test reports for consultant approval in Ghana?

Request Technical CAD & Spec Pack

Specialized Substation & Power Solutions

Featured Technical Engineering & Product Guides

Explore specialized XinHuan power equipment solutions for emergency substations, SF6 gas-insulated distribution, and renewable BESS energy storage.

Related Internal Links

Continue by Product or Region

Use the nearest matching page for specifications, category browsing, or quotation follow-up.

Oil-Immersed Transformer Category

Browse the main oil-immersed transformer category for product variants and RFQ entry points.

11kV Transformer Product Page

Review the 11kV transformer landing page for matching distribution models and specs.

33kV Transformer Product Page

Review the 33kV transformer landing page for rural electrification and feeder applications.

Africa Application Page

See the wider Africa market guide for regional grid context and export positioning.

Request a Quote

Open the RFQ page with destination country and transformer context already prefilled.

Contact XinHuan

Use the contact page if you prefer direct email or WhatsApp before submitting an RFQ.

Ghana RFQ CTA

Send Your Transformer Requirement

Send your primary voltage (11kV / 33kV), kVA capacity, target installation site, and destination port (Tema/Takoradi) for an immediate factory CIF quote.

Go to RFQ

FAQ

Frequently Asked Questions for Ghana

Do you supply 11kV and 33kV transformers for Ghana?

Yes, our transformers for Ghana are engineered for 50Hz frequency, 11kV / 33kV primary voltage, and 415V 4-wire secondary output in full compliance with ECG guidelines.

What capacity range is available?

We support Ghana Standards Authority (GSA) product verification requirements and provide all necessary pre-shipment inspection certificates.

Can the transformer be designed according to IEC 60076?

Common primary distribution ratings in Ghana are 11kV and 33kV, with standard capacities ranging from 100kVA to 2500kVA.

Can you quote FOB or CIF for Ghana?

Yes, we supply complete Routine Test Certificates (IEC 60076), CAD dimension submittals, and schematic diagrams for engineer/consultant approval.

What information is needed for a fast quotation?

Ocean shipping from China to Tema or Takoradi ports typically takes 30-40 days direct.

Can XinHuan support EPC contractors, utilities, and industrial projects?

Send your kVA rating, voltage ratio (e.g. 33kV/0.415kV), vector group, and destination port for an immediate factory CIF quote.
