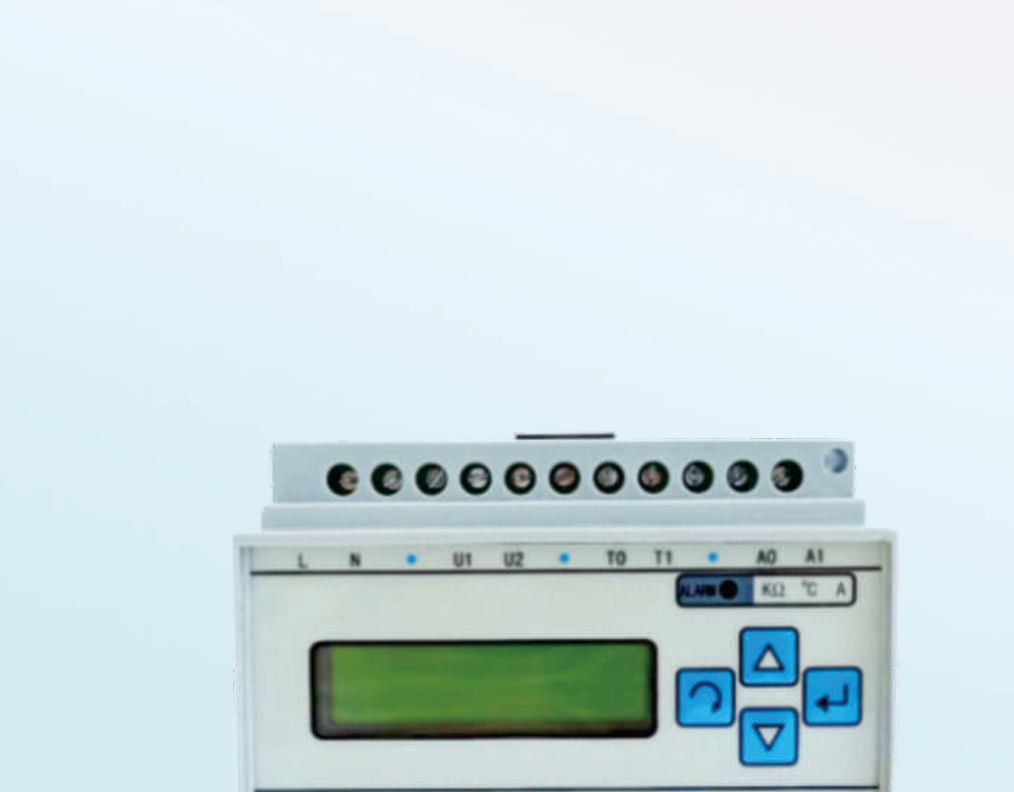

Smart Medical IT System Insulation Monitoring & Alarm Unit

Intelligent digital insulation monitoring and alarm device for ungrounded medical IT power systems. Continuously measures insulation resistance, transformer load current, and winding temperature with RS485 Modbus SCADA output.

Request Quote Back to Catalog

Technical Specifications

Rated System Voltage AC 220V (100V-240V)
Insulation Measuring Range 10 kΩ – 999 kΩ
Alarm Threshold Range 50 kΩ – 500 kΩ (Adjustable)
Current Monitoring Range 2.1A – 50A (with CT)
Temperature Sensor Input PT100 Sensor
Communication Interface RS485 Modbus-RTU

Product Information

Status

Published

Product ID

XH-MED-7100A

Last Updated

2026-07-30 07:38:34

Features

  • Real-time continuous monitoring of insulation resistance in ungrounded medical IT power grids.
  • Audible and visual LED alarm indication for insulation fault, transformer overload, and overtemperature.
  • RS485 Modbus communication for centralized remote monitoring terminals in nurse stations.

Internal Component Engineering Anatomy

High-precision 3D engineering cutaway model illustrating the core, windings, insulation, conservator tank, and protection accessories.

Dry-type transformer internal 3D cutaway model
High-Grade Silicon Core
Electrolytic Copper Windings
Tap Changer System
Buchholz & Temp Sensors

Factory Quality Inspection & Testing Video

Watch routine factory testing and quality control inspections inside XinHuan's manufacturing facility.

All export transformers undergo 100% full routine tests (IEC 60076) before packing and shipping.

Frequently Asked Questions

Specify kVA rating & feeder channels

IEC 60364-7-710, IEC 61557-9

Wooden case, 24m warranty
