What is a Booster Transformer? Working Principle, Railway BT vs. Distribution Regulators

1. Fundamental Working Principle of a Booster Transformer

In a traditional power transformer, electrical energy is transferred entirely across the magnetic core from the primary to secondary winding. The transformer core and windings must be rated for the full throughput power:

In contrast, a Booster Transformer is a series-connected apparatus. Instead of carrying the entire system voltage, its secondary winding carries the full line current \(I_{\text{line}}\), but only produces an incremental adjustment voltage \(\Delta V\). The output voltage delivered to the load is the vector sum of the input voltage and the injected boost voltage:

The Fraction-Capacity Advantage

Because the core of the series booster only handles the product of the line current and the incremental voltage, its physical rating (\(S_{\text{booster}}\)) is only a small fraction of the line's throughput capacity:

Engineering Example: Suppose a 33kV rural feeder delivers 10,000 kVA (10 MVA) of power to an industrial cluster, but experiences an unacceptable 8% voltage drop at the feeder tail. To provide a \(\pm 10\%\) voltage boost, a conventional substation replacement would require a brand-new 10 MVA transformer. With a series booster transformer, the required core rating is:

By handling only 10% of the total throughput, the booster transformer achieves 70% to 80% capital expenditure (CAPEX) savings, compact civil footprints, and drastically reduced transport and civil installation costs.

2. Railway Electrification: The 25kV Traction Booster Transformer (BT System)

In 25kV 50Hz / 60Hz AC electric railway systems, locomotives draw power from the overhead contact wire (catenary). In an unmitigated traction circuit, the return current must flow back to the traction substation through the running rails.

The Stray Ground Current Dilemma

Because running rails are mounted on wooden or concrete sleepers sitting on stone ballast, they are only semi-insulated from the earth. Consequently, 40% to 60% of the return traction current leaks into the ground (earth return currents). These stray earth currents create severe operational challenges:

• Electromagnetic Induction (EMI): Heavy alternating traction currents (often exceeding 600A to 1,200A) induce longitudinal interference voltages in neighboring telecommunication lines, railway signaling cables, and buried pipelines.
• Touch and Step Voltage Hazards: High rail potentials create severe electrical shock hazards for maintenance crews and passengers on station platforms.
• Electrolytic Ground Corrosion: Leaking stray currents accelerate electrolytic corrosion of underground utility infrastructure.

How the 1:1 Traction Booster Transformer Works (吸流变压器)

To eliminate stray ground currents, railway engineers deploy Booster Transformers (BT) spaced at intervals of 3 to 5 kilometers (typically 3.2 km to 4.8 km) along the track:

• 1:1 Turns Ratio: The primary and secondary windings have identical numbers of turns (\(N_1 = N_2\)).
• Primary Winding: Connected directly in series with the overhead contact wire.
• Secondary Winding: Connected in series with an insulated aerial Return Conductor (RC) mounted on the catenary masts.
• Rail Mid-Point Connection: The return conductor is connected to the running rails at the mid-point between two booster transformers.

By the law of ampere-turns balance, the load current flowing through the overhead contact wire forces an equal and opposite current to flow through the return conductor. This magnetic coupling literally "sucks" the return current out of the rails and ground into the overhead return wire (hence its name in China and Japan: 吸流变压器 - Suction/Booster Transformer).

Result: Stray ground return current is reduced from ~50% down to less than 2% to 5%, suppressing telecommunication noise by over 90% to 95%.

3. Distribution Feeder Voltage Regulators (Series Line Boosters)

In medium-voltage utility distribution networks (11kV, 22kV, 33kV), long radial feeders often suffer from severe voltage regulation issues at distant points of delivery:

When heavy industrial motor loads, agricultural irrigation pumps, or mining crushers operate simultaneously, feeder tail voltages can plunge by 10% to 15%, causing motor stalls, lighting flicker, and breaker trips.

Two-Winding Booster Configuration

A distribution voltage booster consists of two electrically coupled windings:

1. Excitation / Shunt Winding: Connected in parallel across the phase lines to draw magnetizing flux from the line voltage.
2. Series / Booster Winding: Connected directly in series with the phase line. The voltage induced in this winding adds to (Boost) or subtracts from (Buck) the source voltage.

Equipped with an On-Load Tap Changer (OLTC) or electronic solid-state switches, the booster transformer regulates voltage automatically:

• Standard Regulation Range: Typically \(\pm 10\%\) in 32 discrete steps of 0.625% (conforming to IEEE C57.15 / ANSI C57.90) or \(\pm 10\%\) in 16 steps of 1.25% (IEC).
• Automatic Voltage Control (AVR): Solid-state microprocessor controllers monitor bus voltage and current through built-in CTs and PTs, triggering tap movements to hold the delivery voltage within a tight \(\pm 1.0\%\) deadband.

Mitigating Distributed Solar PV Voltage Fluctuations

In modern grids with high solar PV penetration, midday solar generation often exceeds local load demand, pushing power backwards toward the primary substation. This reverse power flow causes localized voltage swell (overvoltage):

Modern booster transformers feature bi-directional power flow sensing:

• During peak night load (forward power): The regulator operates in Boost mode (+1% to +10%) to raise depressed tail voltages.
• During sunny midday hours (reverse power from solar PV): The regulator automatically flips to Buck mode (-1% to -10%) to suppress solar overvoltage tripping.

4. Technical Construction & Engineering Specifications

Booster transformers are engineered in both liquid-immersed and dry-type topologies depending on the operating environment:

Authentic Manufacturing & Quality Control

Inside XinHuan's Heavy Transformer Production Bays

ISO 9001 Certified Factory • Hefei, China

Active Materials Core Stacking Bay

CRGO Silicon Steel & Copper Winding Assembly

High-permeability grain-oriented CRGO steel cores precision-laminated with step-lap joints to minimize no-load losses (\(P_0\)) in both 1:1 traction BT and feeder series units.

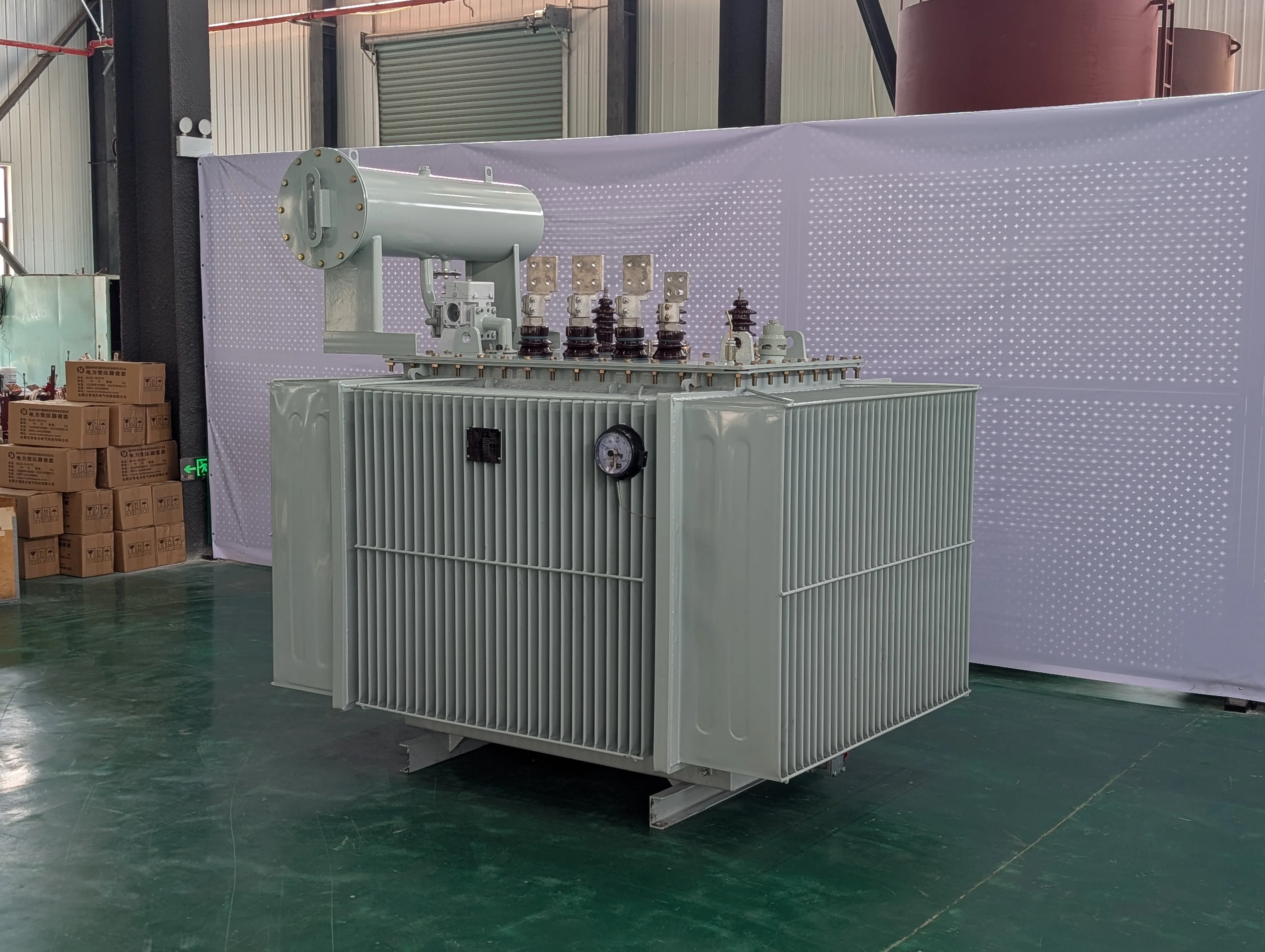

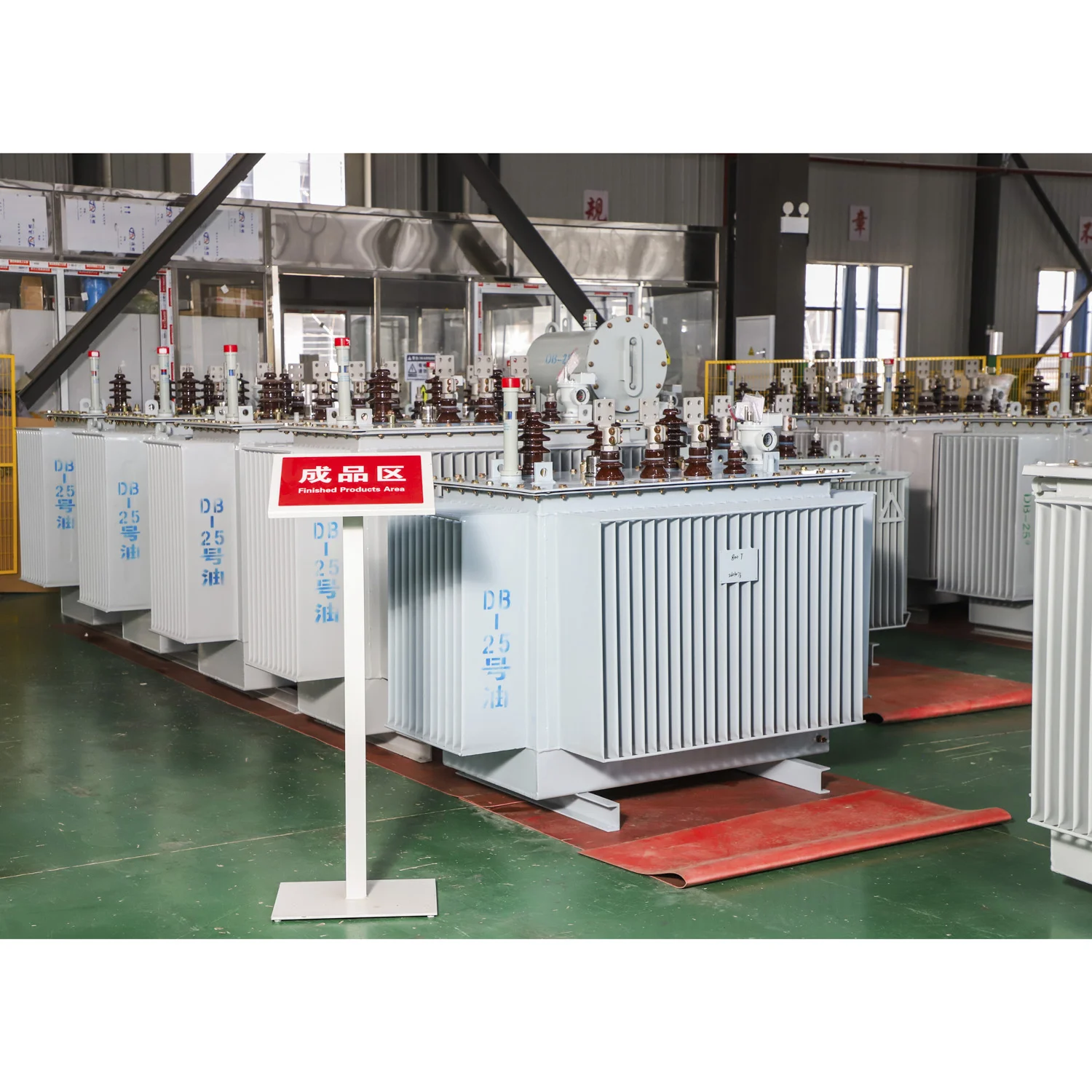

Physical Construction Outdoor Sealed Tank

Hermetically Sealed Corrugated Tank & Bushings

Robust outdoor tank with high-creepage distance porcelain bushings rated for 25kV traction gantries and 33kV distribution networks with C5-M marine anti-corrosion finish.

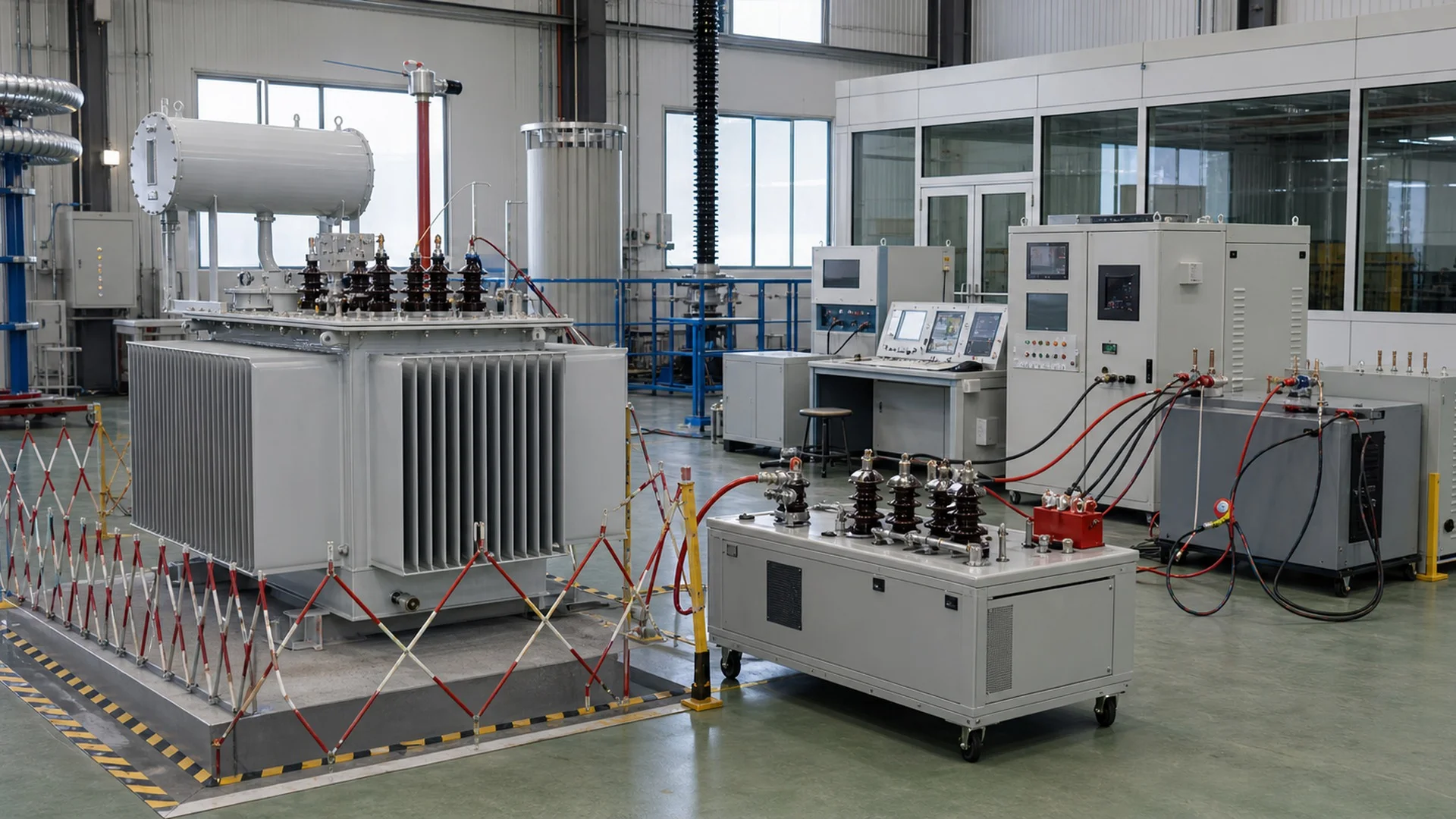

FAT Verification High-Voltage Lab

Full-Wave Lightning Impulse & Dielectric Testing

Every unit undergoes strict Factory Acceptance Testing (FAT) per IEC 60076 & IEEE C57.15, including power frequency withstand, partial discharge (<10pC), and ratio accuracy verification.

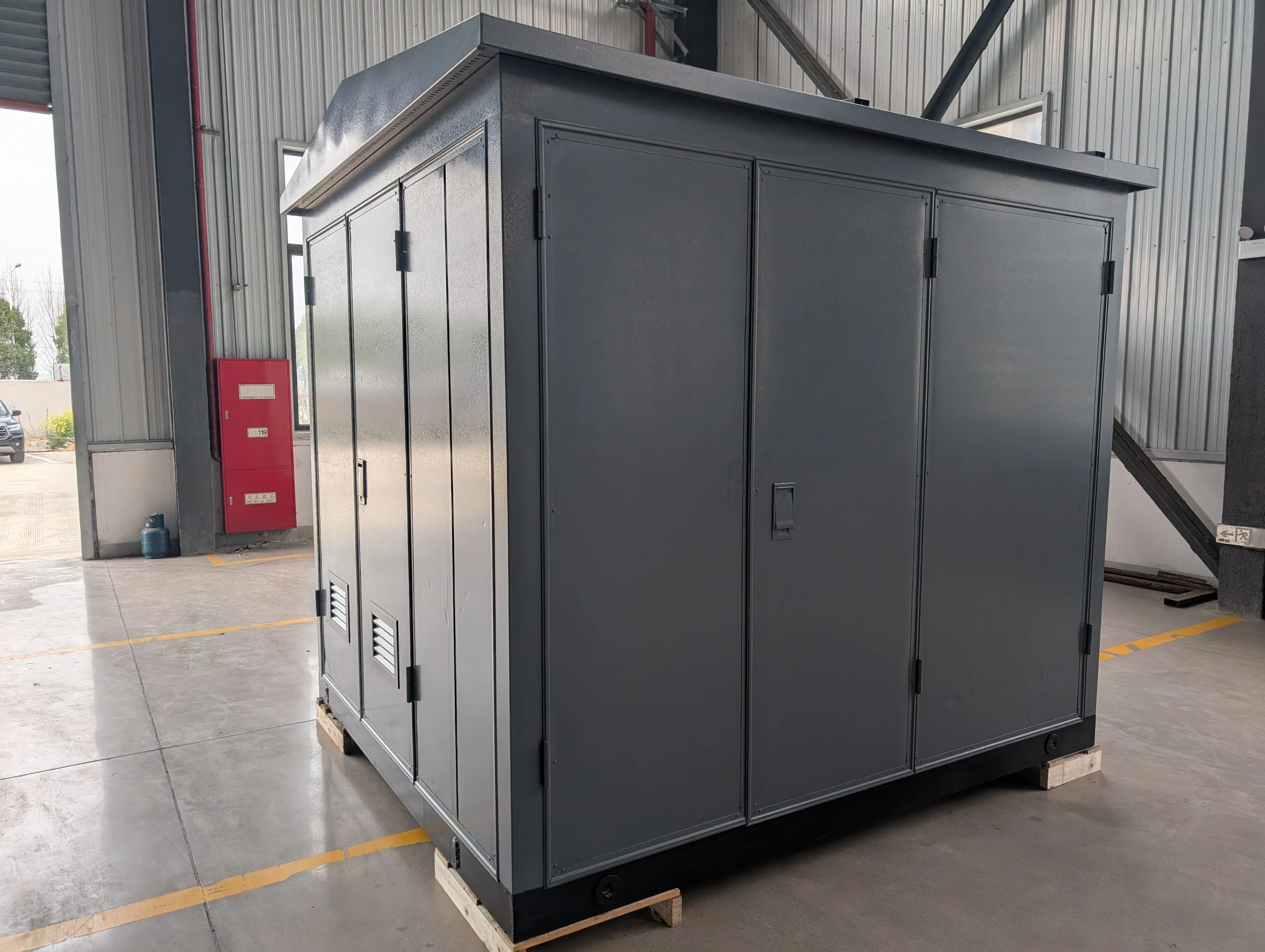

Turnkey Enclosure IP54 Weatherproof Kiosk

Packaged Outdoor SVR Feeder Substation

Pre-wired, pad-mounted kiosk housing 3-phase series step-voltage regulators, bypass switches, surge arresters, and remote SCADA monitoring RTU for rapid utility commissioning.

5. Engineering RFQ Specification Checklist

When issuing a request for quotation (RFQ) or consulting specification for a booster transformer, engineers should provide the following critical parameters:
